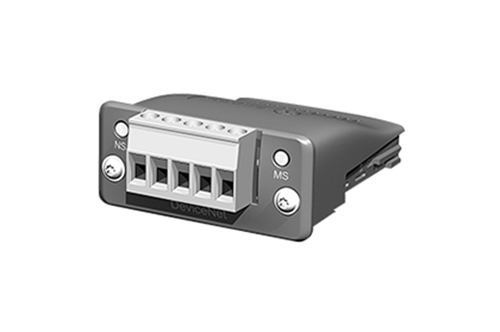

DeviceNet Interface 880/882D/882IS/1280
$0.00
Download product PDF
Features
- DeviceNet communication adapter
- 125 Kbps, 150 Kbps and 500 Kbps baud rate
- Onboard diagnostic LEDs
Specifications
Power:
3.3 VDC, 250 mA
Connector Type:
Pluggable screw terminal |
IP Address Range:
MAC ID 0 to 63
Diagnostic LEDs:
Module status and network status |
Dimensions:
2.00 × 1.90 × 0.75 in
(52 × 49 × 19 mm)
Temperature Range:
-40 °F to 158 °F (-40 °C to 70 °C |
Options
| 179162 |
Ind Opt,Devicenet Model 880 Indicator |
|
|
| 165793 |
1280 Opt,DeviceNet CompactCom Option |
|
|
| 190531 |
882 Opt,DeviceNet CompactCom Option |
|
|
