EL146, 4 Wire Load Cell Cable
$0.00
Download product PDF
Features

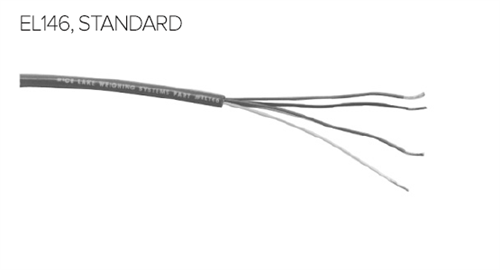

EL146 Standard Cable
- Four-wire load cell cable
- 20 AWG tinned copper wire stranded for flexibility
- Braided shielding is encased in red PVC
- All conductors are industry-standard color coded
- Diameter: 0.25 in
- Use the four-wire cable for repairing or extending existing cable
- Temperature rating: -22 °F to 126 °F (-30 °C to 80 °C)

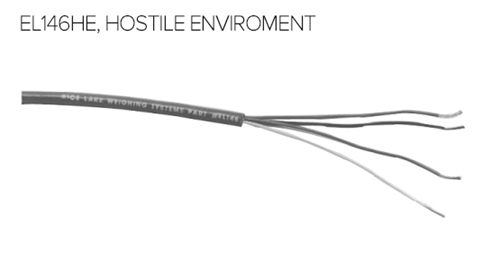

EL146HE Hostile Environment Cable
- Designed for use in hostile environments
- Polyurethane jacketing provides superior chemical and abrasion resistance
- RFI and EMI protected with foil overbraid shield
- Unmatched durability, yet extremely flexible
- All conductors are industry-standard color coded
- Diameter: 0.32 in
- Temperature rating: -22 °F to 176 °F (-30 °C to 80 °C)
- 500 V rating
Options
| 15505 |
Cable,Load Cell 100ft EL146 4-Conductor UL, CSA, c UL approved |
|
|
| 15506 |
Cable,Load Cell 250ft EL146 4-Conductor UL, CSA, c UL approved |
|
|
| 15507 |
Cable,Load Cell 500ft EL146 4-Conductor UL, CSA, c UL approved |
|
|
| 15508 |
Cable,Load Cell 1000ft EL146 4-Conductor UL, CSA, c UL approved |
|
|
| 15493 |
Cable,Load Cell Custom EL146 4-Conductor per foot UL, CSA c UL approved |
|
|
| 15510 |
Cable,Load Cell 100ft EL146HE 4-Conductor Severe Environment |
|
|
| 15511 |
Cable,Load Cell 250ft EL146HE 4-Conductor Severe Environment |
|
|
| 15512 |
Cable,Load Cell 500ft EL146HE 4-Conductor Severe Environment |
|
|
| 15513 |
Cable,Load Cell 1000ft EL146HE 4-Conductor Severe Environment |
|
|
| 15494 |
Cable,Load Cell Custom EL146HE 4-Conductor Severe Environment Per Foot |
|
|
