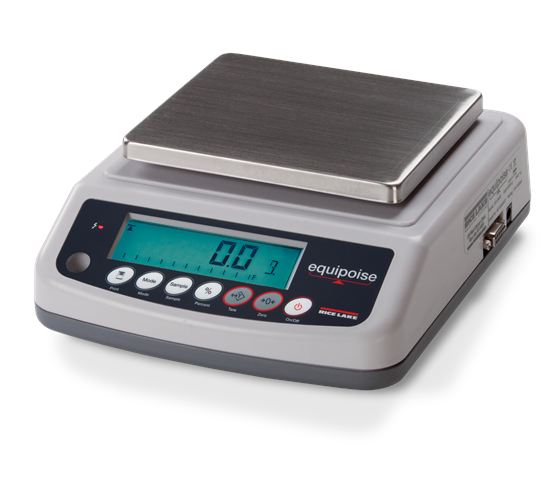

Equipoise Series Balance

$0.00

Rice Lake’s Equipoise balance is ideal for classrooms, laboratories and industrial applications with quick access to 13 different units of measure, percentage, counting and accumulating.

Download product PDF
Category:

Features

  • Capacities between 300 g and 6,000 g
  • Internal resolution: 1/600,000
  • LCD display
  • Quick response
  • Accumulation, counting and percentage modes
  • 13 different units of measure
  • Detachable enclosed weighing chamber (in capacities ≤1 kg)
  • Battery operation for up to 40 hours of continuous use (without backlight)
  • Standard RS-232 interface for connecting to printer or PC
  • Plastic enclosure
  • AC adapter

Specifications

EQ-300^ EQ-600^ EQ-1500 EQ-3000 EQ-6000
^Weighing Chamber
Part # 129410 129411 129412 129413 132435
Capacity 300 g 600 g 1500 g 3000 g 6000 g
Resolution 0.01 g 0.02 g 0.05 g 0.1 g 0.2 g
Weighing Units Gram, Carat, Ounce, Ounce Troy, Pound, Pennyweight, Grain, Momme, Hong Kong Tael, Singapore Tael, Taiwan, Tael, tola
Operating Modes Weighing, Percent Weighing, Parts Counting, Accumulation
Repeatability(+/-) 0.01 g 0.02 g 0.05 g 0.1 g 0.2 g
Linearity(+/-) 0.02 g 0.04 g 0.1 g 0.2 g 0.4 g
Stabilization Time 2 seconds
Operating Temperature 32° F to 104° F (0° C to 40° C)
Weighing Chamber 6.7 x 5.7 x 3.1 in
(170 x 145 x 80 mm)		 N/A N/A N/A
Pan Size Ø 4.7 in (Ø 120 mm) 4.8 in x 5.6 in (122 mm x 142 mm)
Dimensions 7.1 x 8.7 x 3.3 in (180 x 220 x 85 mm)
Est. Ship Weight 6.6 lb (3 kg)
Calibration Weight 300 g 600 g 1500 g 3000 g 6000 g
Power AC adapter (12V/500 mA); internal rechargeable battery (6V/1.2 Ah)
Warranty One-year limited warranty
Return Policy

Options

41279 Cable,RS232 25DBM To 9DBM Pin out 2 to 2, 3 to 3, 7 to 5, DB25 Jumpers 4 and 5, 20 and 6 DB9 Jumpers 4 and 6, 7 and 8
103141 Printer,Tape SP712MD SP700 Model, Tear Bar, RS232, 110 to 230 VAC Internal Power Supply, US Cord
119919 Cable,AbleCable RS-232 DB9-Male to USB. Keyboard Input for Serial Devices
130789 Adapter,Null Modem DB9F/M
131135 Case,Aluminum Equipoise
165183 Adapter,Universal INT Angled, Interchangeable plugs Equipoise and INT400/500

Models

165338 Balance,EQ-300 Equipoise 300 g x 0.01 g, 120 mm platter, Universal Adapter, Multi-plugs Weighing Chamber
165339 Balance,EQ-600 Equipoise 600 g x 0.02 g, 120 mm platter, Multi-range Adapter, Multi-plugs Weighing Chamber
165340 Balance,EQ-1500 Equipoise 1500 g x 0.05 g, 122 mm x 142 mm platter, Multi-range adapter, Multi-plug
165341 Balance,EQ-3000 Equipoise 3000 g x 0.1 g, 122 mm x 142 mm platter, Multi-range Adapter Multi-plugs
165342 Balance,EQ-6000 Equipoise 6000 g x 0.2 g, 122 mm x 142 mm platter, Multi-range Adapter, Multi-plugs
