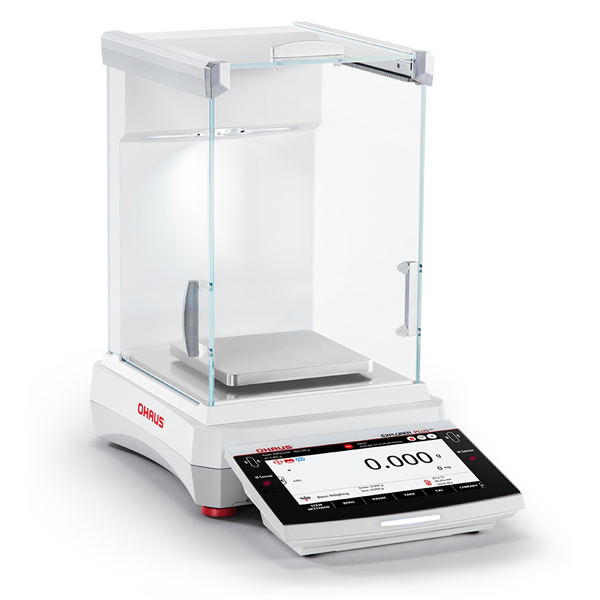

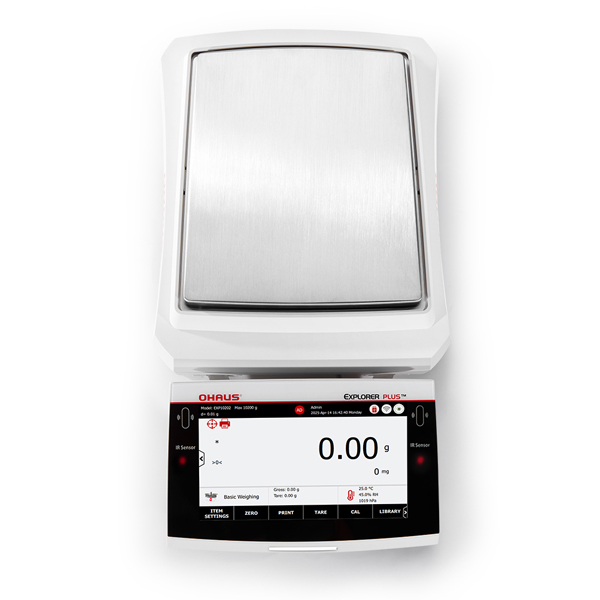

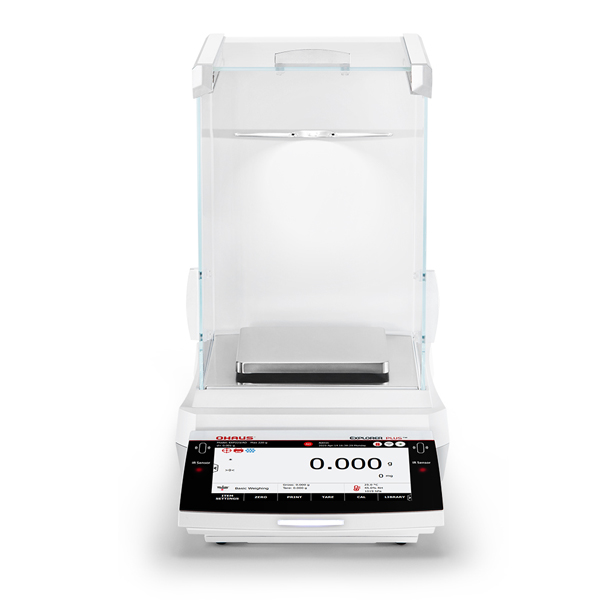

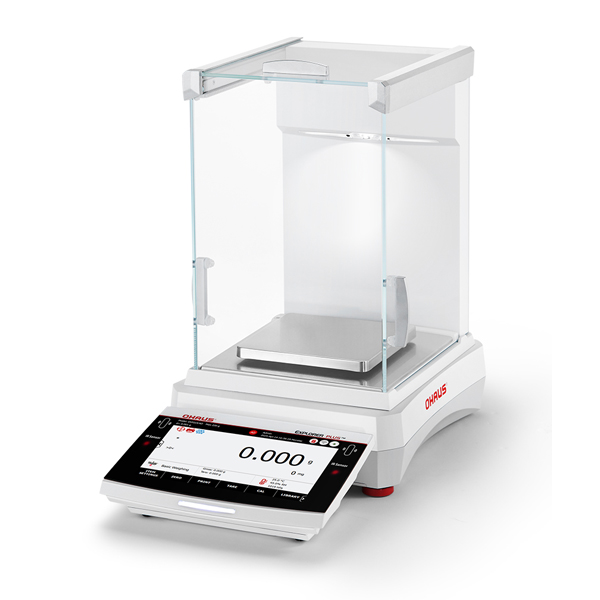

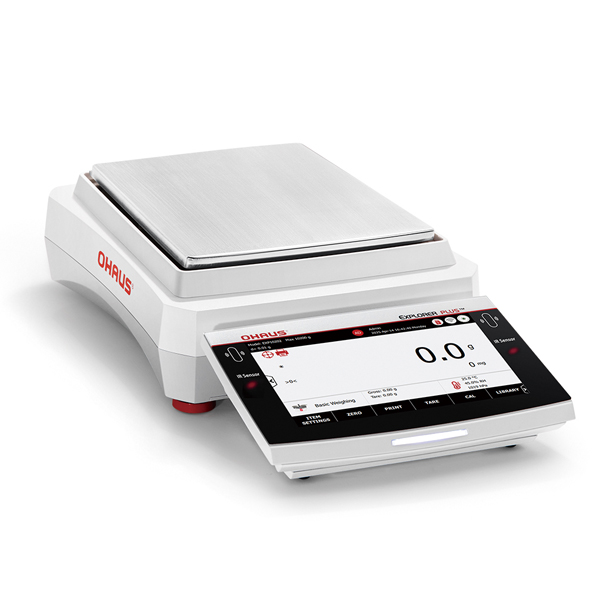

Explorer Plus™ Precision EXP

$0.00

Engineered for Accuracy, Designed for Demanding Applications
The new Explorer EXP series offers a premium weighing performance, compliance support and data traceability. The advanced features take the EXP to the next level by optimizing the user experience. This Flagship balance is crafted to meet the most demanding requirements of modern scientific research.
Download product PDF
Category:

Specifications

Applications
Basic Weighing, Parts Counting, Check Counting, Percent Weighing, Check Weighing, Dynamic Weighing, Totalization, Formulation, Differential, Density Determination, Peak Hold, Pipette Adjustment, SQC, Fill Weight Variation, Flow Rate Control
Display
7-inch TFT 16.7M Color Touch Screen with Glass Overlay
Operation
AC Adapter Input: 100-240 VAC 0.5A 50-60 Hz; AC Adapter Output: 12 VDC 1.5A
Communication
USB Host (Type A) x 2, USB Device (Type B) x 1, USB Device (Type C) x 1, Ethernet (RJ45) x 1, RS232 x 1; Optional Wi-Fi, Bluetooth Dongle
Construction
Modular Design, Metal Base and Housing, SST 316 weighing pan, Motorized Leveling, 2 touchless sensors and Status lights. Automatic doors with anti-pinch safety protection, Anti-static glass draftshield, Built-in ionizer and Sample spotlight (1 mg models).
Design Features
Time Synchronization NTP, Support for HID (Human Interface Device) connection to a computer without the need for drivers, 4 level user management and an internal system log capacity of 100,000 entries, 3000 application sample libraries

Models

Models #: EXP10201
Maximum Capacity
10,200 g
Readability
0.1 g
Pan Size
7.9 in x 7 in (201 mm x 178 mm)
Models #: EXP1203/AD
Maximum Capacity
1,200 g
Readability
1 mg
Pan Size
5.1 in x 5.1 in (130 mm x 130 mm)
Models #: EXP12202
Maximum Capacity
12,200 g
Readability
0.01 g
Pan Size
7.9 in x 7 in (201 mm x 178 mm)
Models #: EXP2202
Maximum Capacity
2,200 g
Readability
0.01 g
Pan Size
7.9 in x 7 in (201 mm x 178 mm)
Models #: EXP223/AD
Maximum Capacity
220 g
Readability
1 mg
Pan Size
5.1 in x 5.1 in (130 mm x 130 mm)
Models #: EXP4202
Maximum Capacity
4,200 g
Readability
0.01 g
Pan Size
7.9 in x 7 in (201 mm x 178 mm)
Models #: EXP423/AD
Maximum Capacity
420 g
Readability
1 mg
Pan Size
5.1 in x 5.1 in (130 mm x 130 mm)
Models #: EXP6201
Maximum Capacity
6,200 g
Readability
0.1 g
Pan Size
7.9 in x 7 in (201 mm x 178 mm)
Models #: EXP6202
Maximum Capacity
6,200 g
Readability
0.01 g
Pan Size
7.9 in x 7 in (201 mm x 178 mm)
Models #: EXP623/AD
Maximum Capacity
620 g
Readability
1 mg
Pan Size
5.1 in x 5.1 in (130 mm x 130 mm)
Models #: EXP8201
Maximum Capacity
8,200 g
Readability
0.1 g
Pan Size
7.9 in x 7 in (201 mm x 178 mm)
Models #: EXP8202
Maximum Capacity
8,200 g
Readability
0.01 g
Pan Size
7.9 in x 7 in (201 mm x 178 mm)
