EZ Mount 1 with RL72020 Weigh Module

$0.00

Accurate and Dependable Weigh Module

The EZ Mount 1 Series weigh module utilizes the double-ended beam design with an articulating top plate to provide superior accuracy in any loading condition. The double-ended beam design means there is less cumbersome hardware and each module has a lower profile than modules of different configurations. NTEP Certified and FM approved RL72020 Series load cells give you accuracy and dependability in many applications, including intrinsically safe and explosion proof areas.

Applications:

  • Medium-to heavy-capacity tank and hopper weighing applications
Download product PDF
Categories: ,

Features

EZ Mount 1 with RL72020 Weigh Module

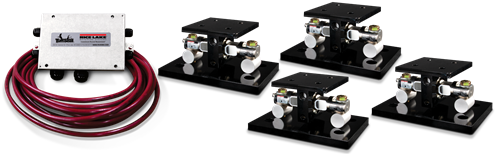

Complete Kit Includes

  • Three or four EZ Mount 1 mild steel compression mounts with RL72020 NTEP Certified double-ended shear beam load cells
  • One JB4SS NEMA Type 4X stainless steel signal trim junction box
  • 25 ft of hostile environment EL147HE SURVIVOR® load cell cable

Standard Features

  • Capacities (per module): 5,000 to 250,000 lb
  • Unique sliding pin design compensates for thermal expansion/contraction
  • Coated mild steel construction
  • Self-checking
  • Easy load cell replacement
  • Simplified design allows bolting directly to tank and floor
  • Center-loaded double-ended shear beam design
  • Low-profile design
  • Compatible with VPG® Revere 5103 load cell

Specifications

Rated Capacity C C1 H H1 H2 L L1 L2 L3 L4 T W W1 W2 W3
lb/in
5,000 to 20,000 0.56 1.06 5.31 0.75 0.50 11.00 8.00 3.00 6.00 6.87 5/8-18 UNF 7.50 4.00 3.00 6.00
30,000 to 60,000 0.68 1.19 8.43 1.00 0.75 15.00 11.50 5.12 8.00 8.50 1-14 UNS 10.00 6.00 5.12 8.00
100,000 0.81 1.38 10.37 1.25 1.25 18.00 14.00 7.50 10.00 9.50 1-14 UNS 12.00 9.00 7.50 10.00
150,000 0.81 1.38 10.37 1.25 1.25 18.00 14.00 7.50 10.00 9.50 1-14 UNS 12.00 9.00 7.50 10.00
200,000 to 250,000 1.06 1.88 16.75 2.00 2.00 26.00 20.00 9.00 12.00 13.00 1 1/2-12 UNS 12.00 6.00 9.00 12.00
