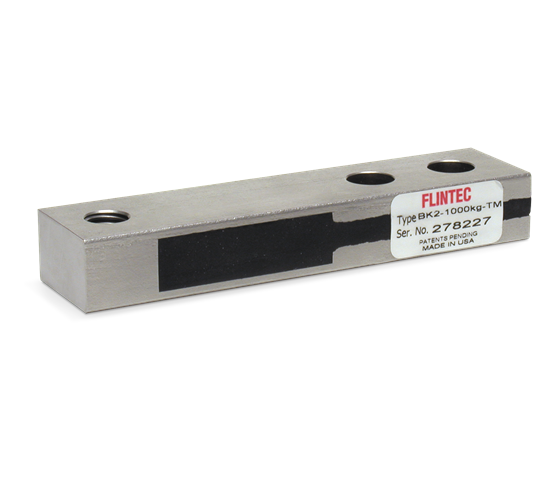

Flintec BK2 Stainless Steel, Single-Ended Beam Load Cell

$0.00

The BK2 is the latest offering from one of the premier suppliers of quality load cells in the world. This new model was designed to lower the scale profile by providing a load cell that is half the overall height of traditional solutions. Ideal for applications such as low-profile floor scales, this model is constructed of stainless steel and has been environmentally potted to provide suitable protection for indoor applications. In addition, the standard calibration technique used by Flintec avoids time-consuming calibration for multiple load cell applications. The BK2 is available in capacities from 200 kg to 2,000 kg and includes 10 ft (3.1 m) of standard load cell cable.

Download product PDF
Categories: ,

Specifications

Full Scale Output:
2.0 ± 0.002
Matched outputs via mV/V/ohm calibration

Output Resistance:
1,000 (± 2) ohm

Input Resistance:
1,100 (± 50) ohm

Material/Finish:
Stainless steel

Temperature:
Compensated range
14° F to 104° F (-10° C to 40° C)
Operating range
0° F to 150° F (-18° C to 65° C)

Seal Type:
Environmentally sealed, IP67

Safe Overload:
200% full scale

Safe Sideload:
100% full scale

Rated Excitation:
5-10 VAC/DC (15 V maximum)

Combined Error:
0.030%

Insulation Resistance:
5,000 megohms

Cable Length:
10 ft (3.1 m)
Also available in 30ft.

Cable Diameter:
0.196 polyurethane jacket

Cable Color Code:
Green +Excitation
Black –Excitation
White +Signal
Red –Signal
Yellow Shield

Warranty:
One-year limited warranty

Approvals:
NTEP
EX
OIML (Available upon request)

Models

1. Non-NTEP Certified

84838 Load Cell,SEB BK2-200kg 200kg 10ft Flintec 2mv/v 1000 OHM SST IP67 1/2-20UNF

2. NTEP Certified

84839 Load Cell,SEB BK2-500kg 500kg 10ft Flintec 2mv/v 1000 OHM NTEP III 5M SST IP67 1/2-20UNF
84840 Load Cell,SEB BK2-1000kg 1000kg 10ft Flintec 2mv/v 1000 OHM NTEP III 5M SST IP67 1/2-20UNF
84841 Load Cell,SEB BK2-2000kg 2000kg 10ft Flintec 2mv/v 1000 OHM NTEP III 5M SST IP67 1/2-20UNF
