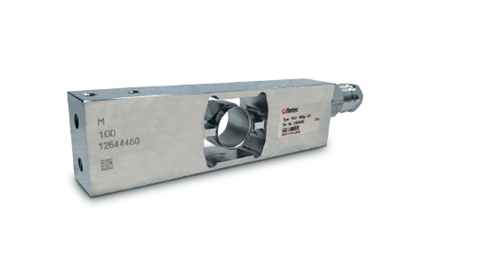

Flintec PC4 Stainless Steel, Single Point Load Cell

$0.00

Download product PDF
Categories: ,

Features

Hermetic load cell that is ideal for adverse conditions. Made of stainless steel with a single point design. Capacities from 10 kg to 100 kg are NTEP Certified and OIML approved. Complete with 10 ft of cable.

Specifications

Full Scale Output:
2 mV/V

Output Resistance:
960 (± 50) ohm

Input Resistance:
1100 (± 50) ohm

Material Finish:
Stainless Steel

Temperature Compensation:
Compensated Range
14 °F to 104 °F (-10 °C to 40 °C)
Operating Range
0 °F to 150 °F (-18 °C to 65 °C)

 Seal Type:
Hermetically sealed, IP69K

Safe Overload:
150% full scale

Rated Excitation:
5 to 10 VDC

Insulation Resistance:
> 5,000 megohm

Max Platform Size:
500 × 400 mm

Combined Error:
0.02% full scale

 Cable Length:
10 ft

Color Code:
Green +Excitation
Black -Excitation
White +Signal
Red -Signal
Blue +Sense
Brown -Sense
Yellow Shield

Warranty:
One-year limited

Approvals:
FM
NTEP
OIML

Options

202692 Load Cell, SPT Flintec PC4-10kg 10ft 2 mv/v 350 Ohm EW C3 NTEP III 5S SST IP69K FM OIML C3
202693 Load Cell, SPT Flintec PC4-20kg 10ft 2 mv/v 350 Ohm EW C3 NTEP III 5S SST IP69K FM OIML C3
202694 Load Cell, SPT Flintec PC4-50kg 10ft 2 mv/v 350 Ohm EW C3 NTEP III 5S SST IP69K FM OIML C3
202695 Load Cell, SPT Flintec PC4-100kg 10ft 2 mv/v 350 Ohm EW C3 NTEP III 5S SST IP69K FM OIML C3
