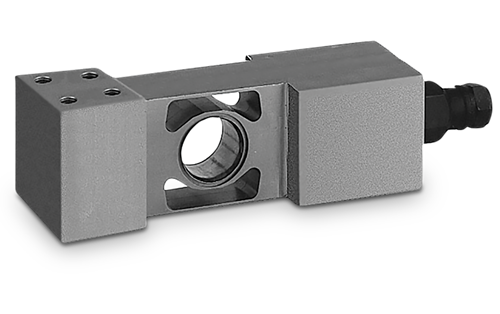

Flintec PC6 Stainless Steel, Single Point Load Cell

$0.00

Download product PDF
Categories: ,

Features

Constructed of stainless steel utilizing hermetic sealing, these load cells are suitable for tough industrial environments. Includes 3 m of field-replaceable load cell cable to simplify cable and load cell repairs. Capacities range from 20 kg to 200 kg.

Specifications

Full Scale Output:
2.0 mV/V

Output Resistance:
960 (± 50) ohm

Input Resistance:
1,100 (± 50) ohm

Material/Finish:
Stainless steel

Temperature:
Compensated range
14 °F to 104  °F (-10 °C to 40  °C)
Operating range
0 °F to 150 °F (-18 °C to 65 °C)

 Seal Type:
Hermetically sealed, IP69K

Safe Overload:
200% full scale

Safe Sideload:
100% full scale

Rated Excitation:
5 to 10 VDC (15 V maximum)

Combined Error:
0.02% full scale

Insulation Resistance:
5,000 megohm

Cable Length:
3 m

 Cable Color Code:
Green +Excitation
Black –Excitation
White +Signal
Red –Signal
Yellow Shield

Max Platform Size:
24 × 24 in

Warranty:
One-year limited

Approvals:
FM
NTEP
OIML

Options

36225 Load Cell,SPT PC6-20kg-C3 3M Flintec 2mV/V 1000 OHM EW SST HS NTEP III 5S IP69K OIML C3 OIML
36226 Load Cell,SPT PC6-50kg-C3 3M Flintec 2mV/V 1000 OHM EW SST HS NTEP III 5S IP69K OIML C3 OIML
36227 Load Cell,SPT PC6-100kg- C3 3M Flintec 2mV/V 1000 OHM EW SST HS NTEP III 5S IP69K OIML C3 OIML
36228 Load Cell,SPT PC6-200kg- C3 3M Flintec 2mV/V 1000 OHM EW SST HS NTEP 5S IP69K OIML C3 OIML
