Flintec PCB Stainless Steel, Single Point Load Cell

$0.00

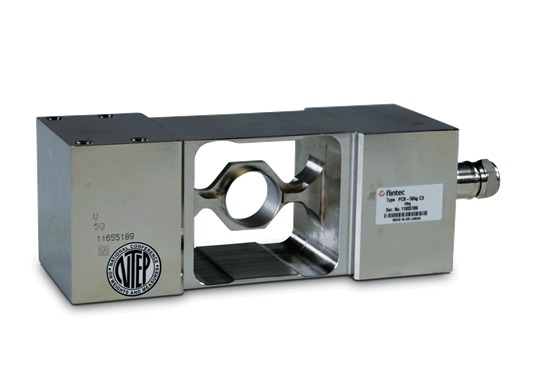

The PCB is the first full stainless steel, hermetically sealed “brick” type of load cell on the market. This unique design provides superior protection in applications where moisture and high humidity are problems. This model features both a welded gauge cavity area, and waterproof cable entry for long-lasting performance in almost any platform scale application. Interchangeable with the industry’s most popular designs, this model provides the ability to upgrade applications. Available in capacities from 50kg to 1,000kg. Each unit includes 10ft (3.1m) of load cell cable.

Download product PDF
Category:

Specifications

Full Scale Output:
2.0 mV/V

Output Resistance:
960 (± 50) ohm

Input Resistance:
1,100 (± 50) ohm

Material/Finish:
Stainless steel

Temperature:
Compensated range
14°F to 104°F (-10°C to 40°C)
Operating range
0° F to 150° F (-18° C to 65° C)

Seal Type:
Hermetically sealed, IP69K

Safe Overload:
200% full scale

Safe Sideload:
100% full scale

Rated Excitation:
5-10 VDC (20 V maximum)

Combined Error:
0.02% full scale

Insulation Resistance:
5,000 megohms

Deflection at Capacity:
50 kg-1,000 kg = 0.015 in (0.4 mm)

Cable Length:
10 ft (3.1 m)

Cable Diameter:
0.196 polyurethane jacket

Cable Color Code:
Green +Excitation
Black –Excitation
White +Signal
Red –Signal
Yellow Shield

Max Platform Size:
39 in x 39 in

Warranty:
One-year limited warranty

Approvals:
FM
NTEP
OIML

Options

17703 Adapter,Conduit 1/2-14NPT Male For SB4/UB1 SST

Models

45274 Load Cell,SPT PCB-50kg C3 10ft Flintec 2mV/V 1000 OHM NTEP III 5 S FM SST HS IP69K
45275 Load Cell,SPT PCB-100kg C3 10ft Flintec 2mV/V 1000 OHM FM SST HS IP69K NTEP III 5 S
45276 Load Cell,SPT PCB-250kg C3 10ft Flintec 2mV/V 1000 OHM FM SST HS IP69K NTEP III 5 S
45277 Load Cell,SPT PCB-500kg C3 10ft Flintec 2mV/V 1000 OHM FM SST HS IP69K NTEP III 5 S
45278 Load Cell,SPT PCB-1000kg C3 10ft Flintec 2mV/V 1000 OHM FM SST HS IP69K NTEP III 5 S
