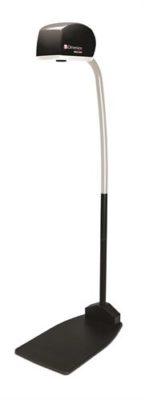

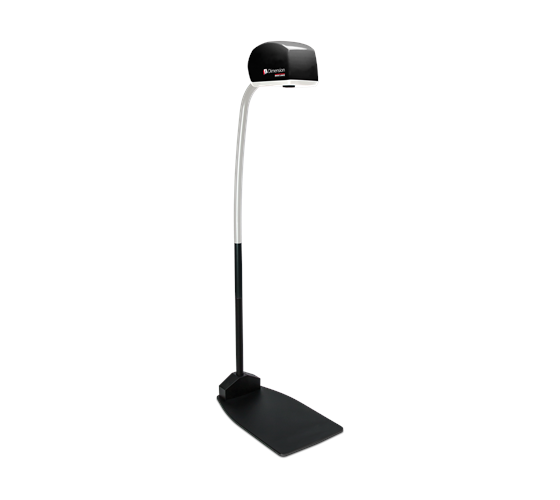

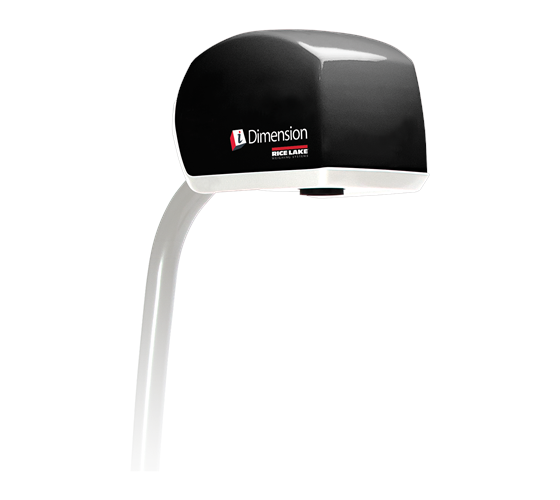

iDimension® 200


iDimension 200 is designed for use on tabletops or workstations in retail, office and shipping environments to dimension packages for shipment.

Download product PDF


  • Dimensions parcels in less than 2/10th of second at 0.2 in NTEP Certified accuracy
  • Requires virtually no special alignment or special handling while placing an object under the work area
  • Converts irregular shapes like cylinders, spheres, tubes, polybags and uneven shapes to 0.5 in NTEP Certified cubed dimensions
  • Dimensions flats, less than 1.2 in height, with the use of a scale connected directly to the iDimension
  • Automatic or manual operating modes
    • Automatic operating mode allows you to move the parcel under the work area without the press of a button
    • Manual operating mode is for use with custom or 3rd party software that can be triggered by a bar code scanner or software function key
  • Interfaces with most NTEP Certified shipping scales and select Rice Lake indicators
  • Enable the high resolution camera to:
    • Convert 1d bar codes into a text format and make it available through the iDimension API status within a defined work area directly under the scanner head
    • Provide an image to be used for use with 3rd party OCR software
  • Connect to a PC and communicate directly over the network via static IP or DCHP. Use our open web service interface to take advantage of additional built in features like a low resolution image of each dimension performed, weight and more.
  • Quick assembly: Includes all necessary tools and components for calibration
  • Contact the factory for an up-to-date listing of 3rd party shipping and inventory management systems compatible with the iDimension


Part # 165600 Product DescriptioniDimension 200
