iDimension® LTL

$0.00

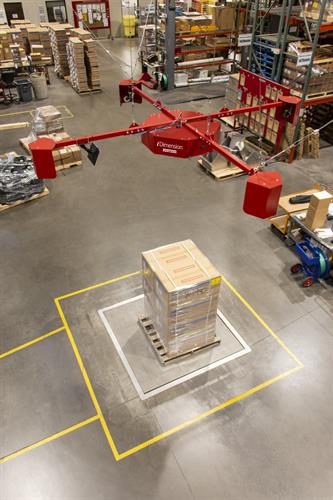

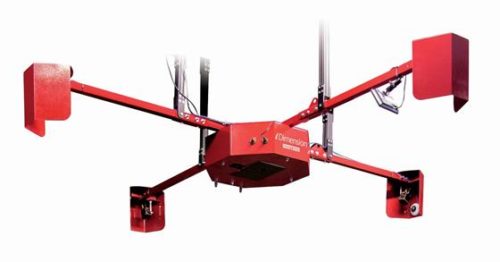

The iDimension LTL optimizes dimensional shipping and enhances quality assurance verification in loading bays, warehouses, and shipping and receiving departments.

Download product PDF
Category:

Features

  • Legal for Trade measurement range for maxium freight size at 96 in x 96 in x 96 in and minimum freight size at 12 in x 12 in x 12 in with 0.5 inch accuracy
  • Dimensions 300-360 pallets per hour
  • Ceiling mounted with suspension cables; minimum 13 ft ceiling height
  • 360-degree access for easy pallet placement in the center of target zone
  • No moving parts and solid-state design
  • Minimal set-up and training required

Specifications

Legal for Trade Measurement Range:
Maximum freight size: (L x W x H) 96 in x 96 in x 96 in
Minimum freight size: (L x W x H) 12 in x 12 in x 12 in

Measurement Increment:
0.5 in

Network Interface:
One static IP address required

Throughput:
300-360 pallets per hour

Performance Characteristics:
Most surfaces; transparent, translucent or glossy surfaces

Item Placement:
Single pallet within the center of the target zone for best performance

Minimum Pallet Height:
4.25 in wood pallets

Shapes:
Solid shapes, two-inch-or-less protrusions may not be included in dimensions

Lighting Conditions:
Operates in most shipping/warehouses indoor lighting environments

Image Types:
Standard 640 x 480 dpi available in .bmp or .jpg file format

Installation Overview:
Method: Ceiling mounted with suspension cables or 80/20 mount beams
Minimum ceiling height: 13 ft
Sensor height: 11 ft
Unobstructed floor space: 10 ft x 10 ft
Target zone: 8 ft x 8 ft directly under the center of the device

System Contents:
iDimension LTL
Ceiling mount hardware and cables
Calibration object
50 ft of Ethernet cable
20 in x 20 in x 20 in test object

Touchscreen Industrial PC:                                        Quad Core Intel E3845, 4GB RAM, CFAST 32GB, XGA
LED standard bright with resistive touch screen
Windows 10 Pro (Quad Core E3845 Processor), with 50 ft of network cable

iDimension Software Suite:
Factory consultation required

Physical Dimensions:
(L x W x H) 135 in x 135 in x 14.60 in

Construction:
Aluminum and mild steel, powder coat paint

Power Requirements:
Single power source (93-264 VAC), with 25 ft power cable

Operating Temperature:
14°F to 104°F (-10°C to 40°C)

Humidity:
0-90% non-condensing

Mechanical Environment Class:
M1

Electromagnetic Class:
E1

Warranty:
Two-year limited warranty

Models

Part # 188300 Product DescriptioniDimension 400 plus, 5 Sensor System, NTEP approved with 8ft x 8ft x 8ft x 0.5 inch
