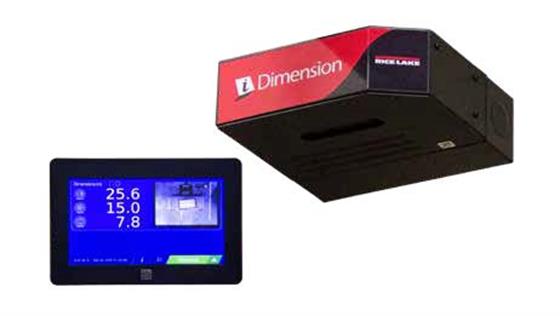

iDimension® Plus XL

$0.00

The iDimension Plus XL is specifically designed for integrators to provide flexibility in the installation of a dimensioning solution anywhere over a conveyor, table or scale from a pole, ceiling mount or support beam. Optional stand is available for ease of integration over a static roller conveyor at 60.2 inches (NTEP approved) or 79 inches above the platform.

Download product PDF
Category:

Features

  • Displays dimensions in less than 0.2 seconds
  • Dimensions parcels at 0.2 in Legal for Trade accuracy
  • Dimensions irregular shape packages, polybags and uneven shapes to 0.5 in
  • Legal for Trade accuracy
  • Dimensions flats, parcels, letters or items less than 2.4 in H when installed at 79 in above platform
  • 7 in USB touch screen display provides results, operator controls for operator standard functions with 118 in cable length
  • Automatic Operating and Manual modes
  • Limited operator training
  • Captures overhead photo of every item, available in .bmp or .jpg format through XML API integration
  • PC interface
    • Static IP or DHCP for use with standard web service API, TCP or HTTP interface or data extraction RS-232 or USB for use with UPS Worldship®, Cubiscan 110/150 emulation and simple command response format
  • Peripherals: Optional powered USB Hub for use of more than one peripheral and UPS Worldship interface.
    • Optional USB barcode scanner with keyboard wedge emulation will manually trigger dimensioning and add barcode text data into web service API. Optional BenchPro parcel and shipping scales are also available
  • The iDimension Plus is not limited to the maximum and minimum Legal for Trade measurements-it is limited to the object fitting within the field of view of the overhead sensor. See Measuring Capabilities table for example.
  • Mounting bracket with 110 – 240 V power supply mount and 25 foot US power cord provided
