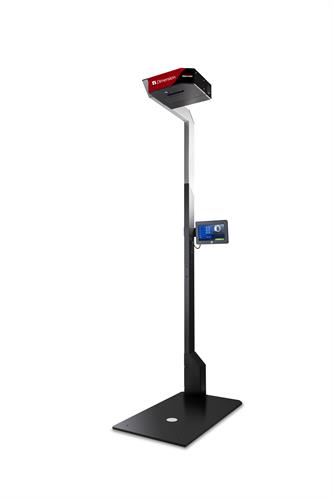

iDimension® Plus


The iDimension Plus static dimensioning system automatically measures parcels and irregular packages in less than 0.2 seconds. A small footprint allows for easy integration into current workstations or retail environments.

Download product PDF


  • Displays dimensions in less than 0.2 seconds
  • Dimensions parcels at 0.2 in Legal for Trade accuracy
  • Dimensions irregular shape packages, polybags and uneven shapes to 0.5 in Legal for Trade accuracy
  • Dimensions flats, parcels, letters or items less than 1.2 in H with scale attached or flat detection trigger located on the base plate
  • 7 in USB touch screen display provides results, operator controls for operator standard functions
  • Automatic Operating and Manual modes
  • Easy to assemble with limited operator training
  • Captures overhead photo of every item, available in .bmp or .jpg format through XML API integration
  • PC interface
    • Static IP or DHCP for use with standard web service API, TCP or HTTP interface or data extraction
    • RS-232 or USB for use with UPS Worldship®, Cubiscan 110/150 emulation and simple command response format
  • Peripherals: Optional powered USB Hub for use of more than one peripheral and UPS Worldship interface. Optional USB barcode scanner with keyboard wedge emulation will manually trigger dimensioning and add barcode text data into web service API. Optional parcel and shipping scales
  • The iDimension Plus is not limited to the maximum and minimum Legal for Trade measurements-it is limited to the object fitting within the field of view of the overhead sensor. See Measuring Capabilities table for example.
