iDimension® PWD System

$0.00

The iDimension® PWD dimensioner and scale system provides shippers with the dimensions and weight of palletized shipments, empowering users to identify the correct freight class and reduce the risk of non-compliance fees from carriers.

Download product PDF
Category:

Features

  • iDimension PWD is capable of measuring pallets up to six feet (1.82 m) cubed—or packages as small as six inches (15.24 cm).

Convenient Pallet Tare Mode

  • For non-Legal for Trade applications, iDimension PWD can measure objects on a pallet by excluding their length and width and subtracting the known pallet height.

Easy Network Integration

  • The iDimension PWD is designed to easily transfer images and dimensions to a network, simplifying claims processes. Built with a web service interface, iDimension PWD offers simple integration using configurable capture definitions through HTTP requests, status checking and XML parsing.

Quick, Simple Installation

  • In less than a day, the iDimension PWD can be set up, configured and put to work.

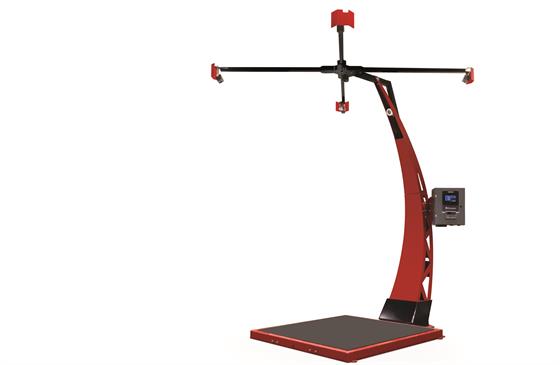

iDimension PWD System
The standard PWD system includes:

  • 5 ft x 5 ft (1.5 m x 1.5 m), 5,000 lb (2,268 kg) capacity floor scale with built-in forklift bumper guards
  • 880 panel mount weight indicator
  • USB-connected touchscreen display
  • Overhead sensors

Specifications

Dimensions Pallets in Less
The iDimension PWD dimensioner and scale system provides shippers with the dimensions and weight of palletized shipments, empowering users to identify the correct freight class and reduce the risk of non-compliance fees from carriers. Ensure invoiced freight charges are accurate at the time of shipment and receive a measurable, nearly instantaneous return on investment with the iDimension PWD.

Same day installation and Operation.
In less than a day, the iDimension PWD can be unboxed, set up and put to work.

Straightforward Operation
The iDimension PWD can be loaded with a forklift or side-loaded with a pallet jack and optional access ramps. Simply place the pallet on the floor scale and use the USB-connected display, optional bar code scanner or web browser to trigger the PWD to capture dimensions. In less than two seconds, the iDimension PWD measures and provides dimensions and weight, and takes a digital picture the item with the optional high-resolution camera.

Versatile Item Sizes
iDimension PWD is capable of measuring pallets up to six feet and packages as small as six inches, cubed.

Convenient Pallet Tare Mode
For non-Legal for Trade applications, iDimension PWD can tare pallet measurements to provide only the dimensions of objects on the pallet.

High-Resolution CameraEasy Network Integration
The iDimension PWD is designed to easily transfer dimensions, weight and images to a network, simplifying claims processes. Built with a web server interface, iDimension PWD offers simple integration using configurable capture definitions through HTTP requests, status checking and XML parsing. The iDimension PWD optional high-resolution camera quickly captures images of freight condition at time of shipment.



Options

200168 iDim PWD Camera Kit option including camera, cabling and hardware
199320 Kit, Scanner Power Scan PM9100-910RB, Base Station PM9300, PM9300 Power Supply and USB Type A 8 ft coiled cable
176307 Scanner,QuickScan QD2131 KBW, USB, Wand Emulation, RS-232, with USB cable Black
199665 iDimension PWD pallet jack ramp
199666 Optional 5th overhead sensor
175812 iDim SS – iDimension Series database and integration program, Windows 10
171666 Field Install & Training Installation Assistance – iDimension Series *************************************************************** The following rates apply to on-site installation assistance and training services provided by Rice Lake Weighing Systems Representatives Monday thru Friday. Per Day Net Charge: $1500 per work day (not to exceed 8 work hours). Additional daily hours prorated at $200 per hour. TRAVEL EXPENSES BILLED SEPARATE AND AT COST Cost between Rice Lake, Wisconsin and the Job location, regardless of mode of transportation. Travel Time: Customer will be charged for the travel time to and from jobsite. Included in the per-day charge. LIVING EXPENSES BILLED SEPARATE AND AT COST to cover room and board, vehicle, incidentals Shipping Expense: Cost for shipment of special equipment to and from job location.

Models

199318 iDimension PWD System NTEP approved, includes iDimension PWD Dimensioner, 880 Kiosk and 5,000 lb capacity 5 x 5 ft Summit Floor Scale max and 6 x 6 x 6 inch minimum
