Indoor Remote Displays

$0.00

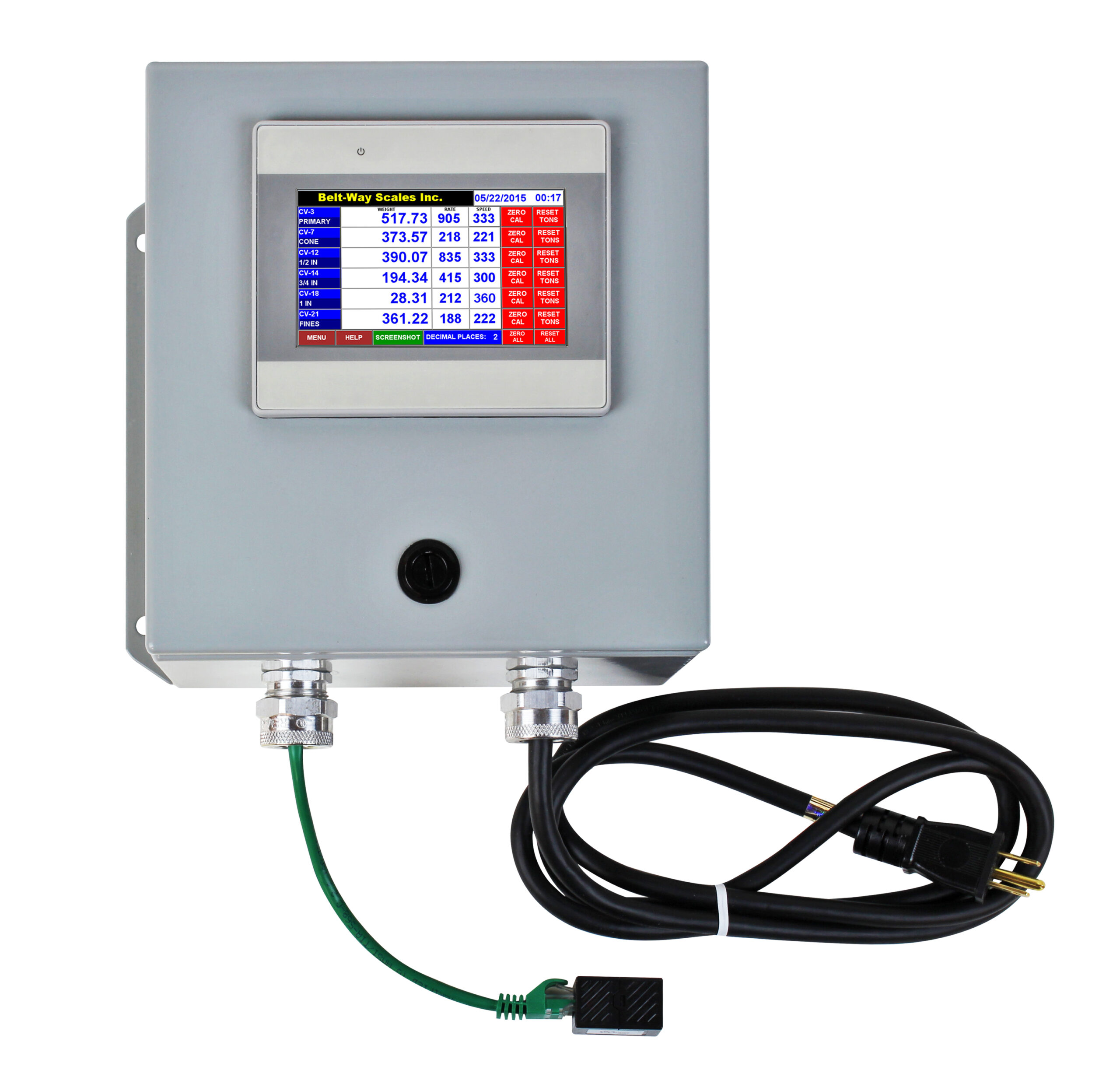

The Belt-Way Remote Display permits a plant operator to monitor multiple scales from a central location. The scales must be networked with Ethernet cable or transmit wirelessly to the display. The Remote Display gives the operator a real time view of scale production to make sure the plant is running properly. It also saves time by allowing the user to reset totals and perform zero calibrations from the control room. The user can view multiple totals and calibration values. Other features include data logging of production to Excel files, monitoring from smart phones or tablets, and remote connection from an FTP client.

Download product PDF
Categories: ,

Features

4 Inch Touchscreen Indoor Remote Display

  • 1 to 2 Scales
  • Zero Calibration
  • Reset Total

7 inch Touchscreen Indoor Remote Display – BASIC

  • 1 to 6 scales
  • Zero Calibration
  • Reset Total
  • View Historical totals & calibration

7 inch Touchscreen Indoor Remote Display

  • 1 to 6 scales
  • Zero Calibration
  • Reset Total
  • View Historical totals & calibration
  • Data Logging
  • Graphing
  • Total Production, TPH, & Belt Speed Reports
  • VNC Viewer to PC or Smartphone

HDMI TV-Module (TV not included)

  • 1 to 12 scales (optional upgrade to 20 scales)
  • USB mouse included for operator control
  • Zero Calibration
  • Reset Total
  • View Historical totals & calibration
  • Data Logging
  • Graphing
  • Total Production, TPH, & Belt Speed Reports
  • VNC Viewer to PC or Smartphone

Specifications

Display: 4 inch or 7 inch color touchscreen
Max Colors: 16 Million
Resolution: 4 inch: 480 x 272, 7 inch: 800 x 480
Power Requirements: 24 VDC @ 350 mA (110 / 220 – 24VDC Power Supply Included)
Enclosure: 4 inch: 8.5 x 6.5 x 4, 7 inch: 10.5 x 8.5 x 6
Communication: Ethernet
Data Storage: 128 MB internal, 4 GB USB flash drive
Temperature Rating: 32-122 degrees F
Protection Rating: IP65 (NEMA 4)
Usage: Indoor only

Options

ASM0325 4″ Touchscreen Display, Monitor and Record Data in Real Time
ASM0294-BASIC Basic 7″ touch screen display
ASM0294 7″ touch screen with data storage
BWTV-MODULE BWTV-Module
