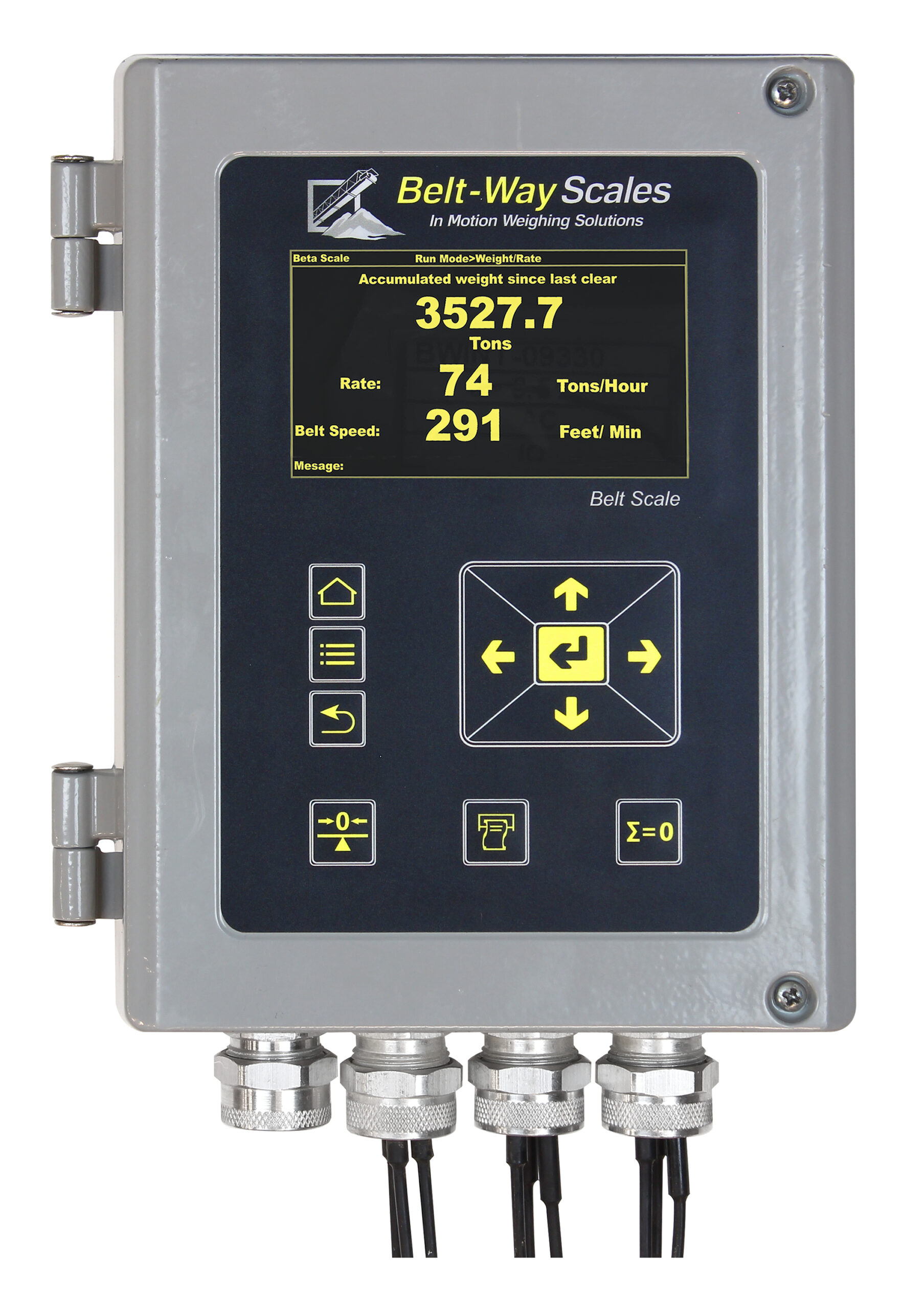

Belt-Way Scale’s integrator offers an array of options for ease of use for belt scale operations. Belt-Way’s integrator is easy to install, easy to calibrate, and features a robust design that keeps the integrator calibrated for long periods of time. Belt-Way’s integrator features Dynamic Tare and Clear Weight Adjustment; Automatic Zero Adjustment; Flow Rate displays featuring Tons/Hour, Lbs/Hour, Kgs/Hour, and Tonnes/Hour; and Resettable and Non-Resettable Totals. Belt-Way’s integrator communicates via Ethernet, and offers optional Analog and Digital Output. The integrator’s easy-to-use design and rugged durability provides end-users with durable, accurate, and repeatable performance.
Push-Button Dynamic Tare and Clear Weight Adjustment
Automatic Zero Adjustment
Four Flow Rate Display Options
Total Can Be Resettable or Non-Resettable
Ethernet Communication
Optional Analog and Digital Output
Durable Design
Highly Accurate
Easy Installation
Simple Calibration
Specifications
Calibration: Automatic tare weight determination, dynamic test and recalibration, automatic zero adjustment Alarms: Load Cell Failure, Belt Speed Zero, Optional process alarms such as low and high rate, speed, load, etc. Communications and Printer: ModbusTCP; Optional: Allen-Bradley; RS485, RS232, USB Field Mount Housing: Dimensions: 22.5 x 16.5 x 13.5 cm (8.8 x 6.48 x 5.3 in), Protection: IP 65 Equivalent Display: Large color graphic display with multi-language support Electrical Ratings: 12-30 VDC, 24 VDC 2.25a Max Operating Temp.: -20°C to +45°C (-4°F to +113°F) Load Cell Inputs: Supports eight independent load cell inputs Memory: 1,080 hours of internal memory storage Online Reporting: Each Integrator is equipped to connect to Plant Connect
