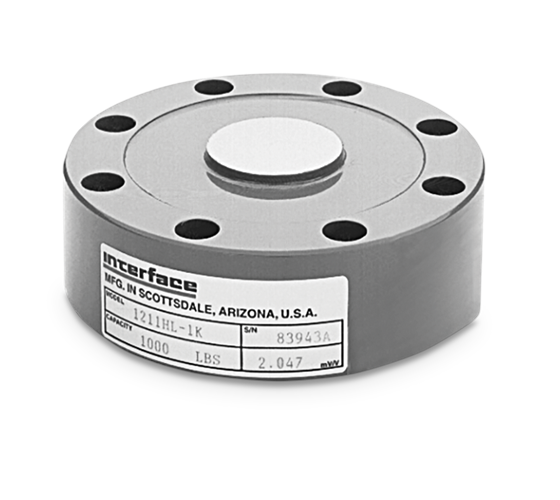

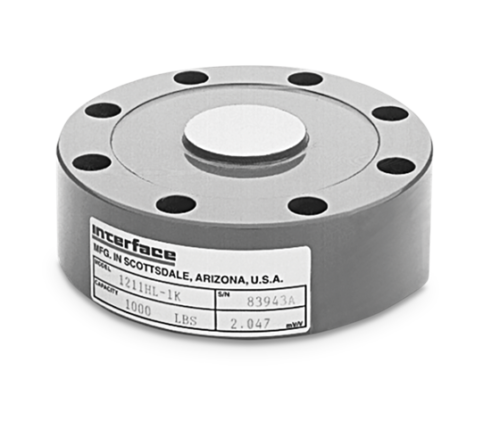

Interface 1200 Alloy Steel/Aluminum Compression Canister Load Cell

$0.00

The 1200 Series compact design permits smaller, more compact testing machines, portability and allows for weighing systems of substantially smaller dimensions. Resistance to extraneous forces produces high fatigue life, permits less stringent mounting alignment and reduces the possibility of reading errors. Capacities range from 1,000 lb to 100,000 lb (453.6 kg to 45,359.2 kg). Complete with 10 ft (3.1 m) of load cell cable.

Download product PDF
Categories: ,

Specifications

Full Scale Output:
2.0 mV/V (1,000-2,000 lb)
4.0 mV/V (5,000-100,000 lb)

Bridge Resistance:
350 ohms, nominal

Material/Finish:
1,000 lb-2,000 lb (aluminum)
5,000 lb-100,000 lb (alloy steel)

Temperature:
Operating range
0° F to 150° F (-18° C to 65° C)

Seal Type:
Environmentally sealed, IP67

Safe Overload:
150% full scale

Rated Excitation:
5-10 VDC (20 V maximum)

Nonlinearity:
0.05% full scale

Hysteresis:
0.02-0.04% full scale

Insulation Resistance:
5,000 megohms

Cable Length:
10ft (3.1m)

Cable Color Code:
Red +Excitation
Black –Excitation
Green +Signal
White –Signal

Warranty:
Two-year limited warranty

Models

36132 Load Cell,CDK 1211EX-1k Low Profile AL 1000lb 10ft Interface 2mV/V 350 OHM
36133 Load Cell,CDK 1211EX-2k Low Profile AL 2000lb 10ft Interface 2mV/V 350 OHM
