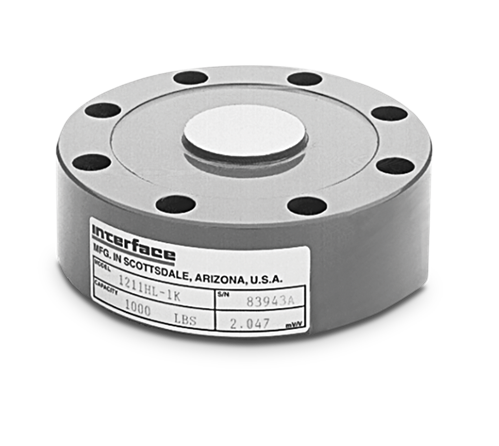

Interface 1200 Series Alloy Steel/Aluminum Compression Canister Load Cell

$0.00

Download product PDF
Categories: ,

Features

Resistance to extraneous forces allows for high fatigue life, less stringent mounting alignment and lesser possibility of reading errors. This design permits smaller, portable and compact testing machines. Capacities range from 1,000 lb to 100,000 lb. Complete with 10 ft of load cell cable.

Specifications

Full Scale Output:
1,000 to 2,000 lb: 2.0 mV/V
5,000 to 100,000 lb: 4.0 mV/VBridge Resistance:
350 ohm, nominal

Material/Finish:
1,000 to 2,000 lb: Aluminum
5,000 to 100,000 lb: Alloy steel

Temperature:
Operating range:
0 °F to 150 °F (-18 °C to 65 °C)

 Seal Type:
Environmentally sealed, IP67Safe Overload:
150% full scale

Rated Excitation:
5 to 10 VDC (20 V maximum)

Nonlinearity:
0.05% full scale

Hysteresis:
0.02 to 0.04% full scale

 Insulation Resistance:
5,000 megohmCable Length:
10 ft

Cable Color Code:
Red +Excitation
Black –Excitation
Green +Signal
White –Signal

Warranty:
Two-year limited

Options

36132 Load Cell,CDK 1211EX-1k Low Profile Aluminum 1000lb 10ft Interface 2mV/V 350 OHM
36133 Load Cell,CDK 1211EX-2k Low Profile Aluminum 2000lb 10ft Interface 2mV/V 350 OHM
36134 Load Cell,CDK 1211EX-5k Low Profile Alloy Steel 5000lb 10ft Interface 4mV/V 350 OHM
36135 Load Cell,CDK 1211EX-10k Low Profile Alloy Steel 10,000lb 10ft Interface 4mV/V 350 OHM.
36136 Load Cell,CDK 1221EX-25k Low Profile Alloy Steel 25,000lb 10ft Interface 4mV/V 350 OHM.
36137 Load Cell,CDK 1221EX-50k Low Profile Alloy Steel 50,000lb 10ft Interface 4mV/V 350 OHM.
36138 Load Cell,CDK 1231EX-100k Low Profile Alloy Steel 100,000lb 10ft Interface 4mV/V 350 OHM.
