DISCONTINUED

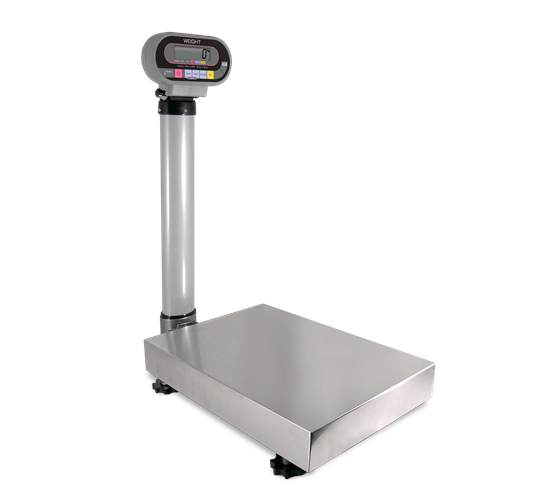

Ishida IGX & IGB Series

Ishida?s IGX & IGB Series bench scales are as adaptable as they come, with a heavy duty design that accommodates capacities as high as 300 pounds.

Unfortunately this product has been DISCONTINUED. For similar products click here.
Category:

Features

  • Ability to toggle between lb and kg
  • Stainless steel cover with die-cast base
  • Checkweighing function
  • Configurable display resolution: 1/3,000, 1/6,000, 1/7,500 (NOTE: Legal for Trade setting is 1/3,000)
  • 10?PLUs for storing tare, upper limit, lower limit

IGX:

  • Display, VFD
  • Power, 120 VAC
  • Internal buzzer

IGB:

  • Display, LCD
  • Power, two D-size batteries or optional AC adapter
  • Selectable automatic power-off function
  • Batteries not included

Request More Information

Specifications

Capacity:
IGX 150 lb/60 kg x .05 lb/0.02 kg
IGX 300 lb/150 kg x .1 lb/0.05 kg
IGB 150 lb/60 kg x 0.05 lb/0.02 kg
IGB 300 lb/150 kg x 0.1 lb/0.05 kg

Accuracy:
Configurable 1/3,000**, 1/6,000, 1/7,500
**Legal for Trade setting

Display:
IGX: vacuum fluorescent display (VFD), 25 mm
IGB: liquid crystal display (LCD), 29 mm

Display Items:
Weight: five-digits, center of zero, tare, checkweighing: over ?H,??under ?L?

Electrical Power:
IGX: 120 V
IGB: D size batteries or optional AC adapter
(batteries not included) 500 hour battery life

Operating Temperature:
23? F to 109? F (-5? C to 40? C)

Warranty:
One-year limited warranty

Approvals:
NTEP CC 05-020, Class III, 3,000 d

Options

75473 Power Supply,Adapter 120VAC 60Hz 4W Input 6VDC 300mA Output 1.7x4x9.5mm Female EIAJ-2 Output Plug IPC IPC-WP IGX IGB Ishida
86545 LIT,Manual IGX IGB Operation Ishida

Models

IGB

Part #?84991 Product DescriptionScale,Platform IGB 150lb Digital LCD Weight Indicator Two D Size Batteries or AC Adapter (Not Included) Ishida
Part #?84992 Product DescriptionScale,Platform IGB 300lb Digital LCD Weight Indicator Two D Size Batteries or AC Adapter (Not Included) Ishida

IGX

Part #?84989 Product DescriptionScale,Platform IGX 150lb Digital VFD Weight Indicator Ishida
Part #?84990 Product DescriptionScale,Platform IGX 300lb Digital VFD Weight Indicator Ishida
