Ishida Uni-5 Series

$0.00

Value By Design

Ishida’s Uni-5 Series of price-computing scales and printers are positioned to be one of the best values in retail weighing today. Retail customers may choose from three distinct printer and scale-base configurations— all with the same easy-to-use universal control panel.

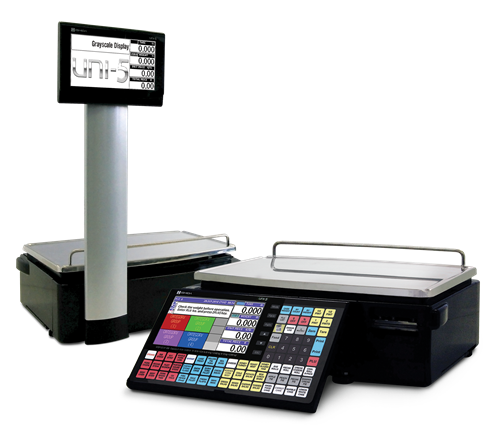

Whether selecting the straightforward bench model, bench with pole, or elevated head style, Uni-5 users can appreciate a large, full-color touchscreen, while customers view advertised specials and details of their purchase on an ultra-bright customer-side LCD.

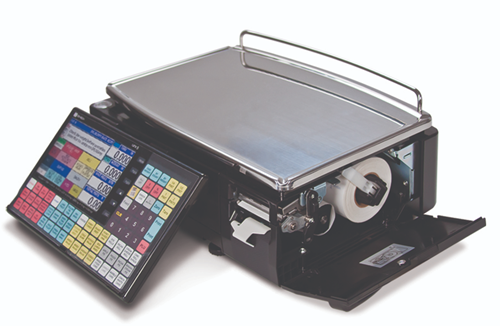

The Uni-5 is more than just attractively priced. It’s also attractive in design, with a polished, black polymer housing that’s easy to clean, and a convenient sideloading printer for quick label changing. A low-profile design and green energy consumption round out a long list of essential features for today’s progressive retail marketplace

Download product PDF
Categories: ,

Features

  • Large color touchscreen (7 in)
  • Dual-range weighing (0 to 15 lb × 0.005lb/15 to 30 lb × 0.01 lb)
  • Ethernet communications
  • Up to 99 pages of preset keys
  • Adjustable touchscreen viewing angle
  • 77 tactile keys
  • 4 MB memory
  • Grayscale LCD customer-side display
  • Self-serve mode/operation
  • 30+ selectable fixed bar code formats
  • 2020 nutrition labeling
  • Configurable for different languages including Spanish, French and German
  • Compatible with third-party communication software, including Invatron’s PLUM and ADC’s InterScale

Specifications

Capacity (Dual Range):
0 to 15 × 0.005 lb, 15 to 30 × 0.01 lb

Capacity (Single Range):
60 × 0.02 lb option

Display:
Operator: Color LCD, 7 in
Customer: Grayscale LCD, 7 in
Display Items:
Tare: Four-digits
Unit price: Six-digits
Weight: Five-digits
Total price: Six-digits

Preset Keys:
1980: 20 × 99 pages

Memory Capacity:
4 MB

 Communications:
Static TCP/IP 10/100 Base T Ethernet
Wireless WEP/WPA/WPA2

Interface:
USB port, back-up and restore only

Platter:
15.7 × 10.8 in (398 × 275 mm)

Print Head:
Direct thermal 2.2 in head (56 mm)

Print Speed:
3.2/ 3.9/ 4.7/ 5.9 in/sec
(80/ 100/ 120/ 150 mm/sec)

Label Size:
Width: 1.5 to 2.5 in (38 to 64 mm)
Length: 1.5 to 7.9 in (38 to 200 mm)

 Label Roll:
Inside diameter: 1.6 in (40 mm) min
Outside diameter: 3.9 in (100 mm) max

Label Backing Paper:
Width: Up to 2.6 in (66 mm)

Power Supply:
AC100 to 240 V, 50/60 Hz

Power Consumption:
Stand-by: 50 W
In operation: 120 W

Classification:
NTEP CC 07-099
UL listed

Warranty:
One-year limited

Options

19356 Retail Scale, Uni-5 Bench 15×0.005lb/30×0.01lb RF kit, 115VAC Ishida
155264 Retail Scale, Uni-5 Bench 60 x 0.02lb, RF, 115VAC, Ishida
155265 Retail Scale, Uni-5 Pole 60 x 0.02lb, RF, 115VAC, Ishida
154737 Retail Scale, Uni-5 Bench 60 x 0.02lb non-RF, 115VAC Ishida
119359 Retail Scale Uni-5, Bench TCP/IP non RF, 15×0.005lb/30×0.01lb, Ishida
119360 Retail Scale, Uni-5, Pole TCP/IP non RF, 15×0.005lb/30×0.01lb, Ishida
119357 Retail Scale, Uni-5 Pole 15×0.005lb/30×0.01 RF Kit, 115VAC Ishida

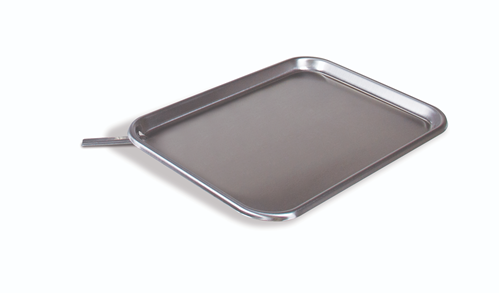

46916 Retail Scale OPT,Produce Platter 11-1/2 in Deep x 17 in Wide Ishida
46917 Retail Scale OPT,Fish Platter 11-1/2 in Deep x 17 in Wide Ishida
78860 Cable,Ethernet Cross RJ45 to RJ45, 7FT
167774 Cover,In Use Operator Controller Uni-5 Uni-7 Ishida
