Ishida Uni-7 Series

$0.00

Standardize Retail Price-Computing

Whether operated from a back room, poised on a deli counter, or suspended somewhere in between, Ishida’s Uni-7 is a must for today’s modern retail settings. The complete Uni-7 Series showcases models for every station type, each a completely networkable scale base and printer, and each a variation on the same highly functional Uni-7 interface.

Front and center is the Uni-7’s sleek titanium appearance and one-of-a-kind color touchscreen. Users can customize the display with their own unique product catagories and PLUs. For the most lifelike experience, a tactile sensation and audible tone signals each press of a button. But that’s just the beginning. Uni-7 is equipped with a quick-change, front-loading label cassette, and multilingual capability. Easily manage everything from frequent price changes to future meat and nutrition-labeling tasks. Innovation at its best, Ishida’s Uni-7 Series is the tool of choice for unifying workspaces everywhere.

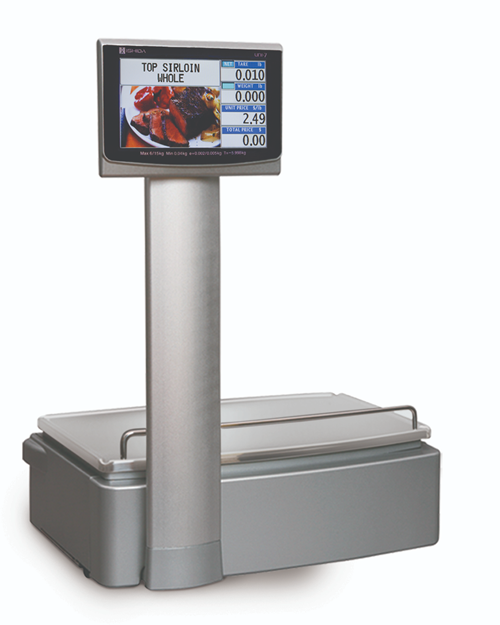

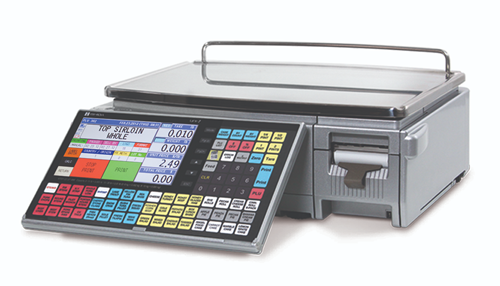

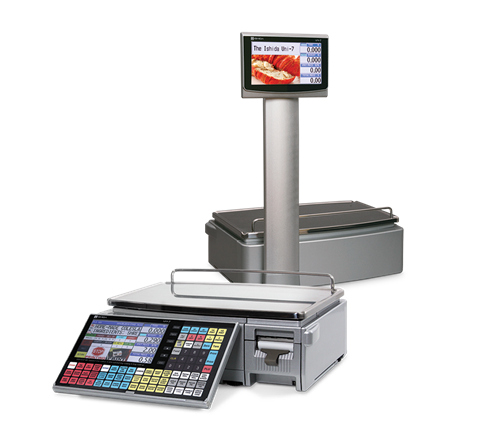

Uni-7 Bench and Pole

A perfect counter-level or bench-top device, this all-in-one scale offers weighing, printing and price computing. Advertise directly to your customers on their own full-color display, housed within the scale itself (bench model) or on an elevated pole.

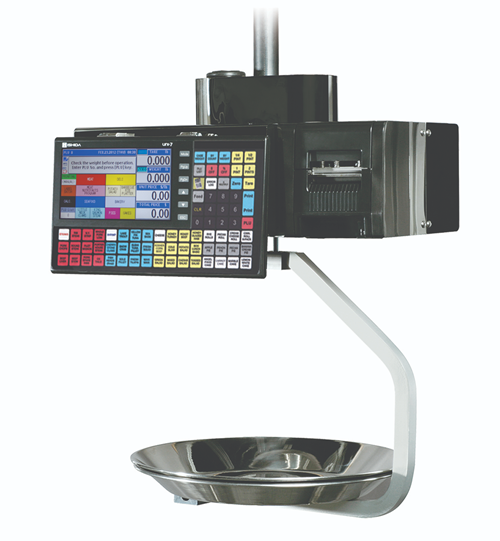

Uni-7 Hanging

The only hanging scale on the market with a full-color touchscreen. This space-saving, suspended design cradles product in its bowl-shaped pan. Keypad and display remain at eye level, away from busy work areas or moisture.

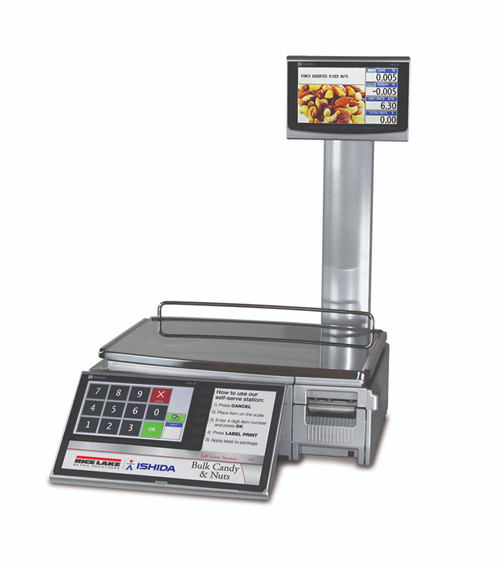

Uni-7 Self-Serve

Thanks to a simple, customized large-button keypad and pole-mounted color display, selfservice applications are more feasible than ever. Customers view images for each PLU and follow instructions to weigh and print labels for their own merchandise.

Download product PDF
Categories: ,

Features

  • Large color touchscreen (7 in)
  • Adjustable touchscreen viewing angle
  • Color graphics on customer-side display (not available on part number 109368, labeler scale)
  • Dual-range weighing (0 to 15 lb × 0.005 lb/15 to 30 lb × 0.01 lb)

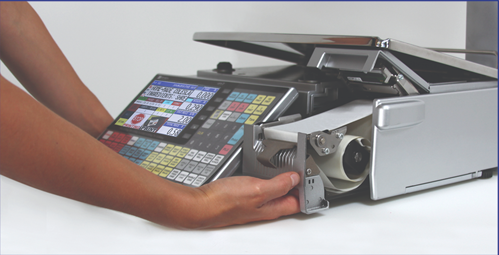

  • Front-load label cassette
  • Supports multiple label formats
  • Ethernet communications
  • Up to 99 pages of preset keys
  • 77 tactile keys
  • 4 MB standard memory expandable to 2 GB
  • Self-serve mode/operation
  • 30+ selectable fixed bar code formats
  • Configurable for different languages including Spanish, French and German
  • Compatible with third-party communication software, including Invatron’s PLUM and ADC’s InterScale
  • 2020 nutrition labeling

Specifications

Capacity (Dual Range):
0 to 15 × 0.005 lb, 15 to 30 × 0.01 lb

Capacity (Single Range):
0.60 × 0.02 lb option

Display:
Operator: Color LCD, 7 in
Customer: Color LCD, 7 in

Display Items:
Tare: Four-digits
Unit price: Six-digits
Weight: Five-digits
Total price: Six-digits

Preset Keys:
1980: 20 × 99 pages

Memory Capacity:
4 MB expandable to 2 GB

 Communications:
Static TCP/IP 10/100 Base T Ethernet
Wireless WEP/WPA/WPA2

Interface:
USB port (backup and restore only)

Platter:
15.7 × 10.8 in (398 × 275 mm)

Print Head:
Direct thermal 2.2 in head (56 mm)

Print Speed:
3.2/ 3.9/ 4.7/ 5.9 in/sec
(80/ 100/ 120/ 150 mm/sec)

Label Size:
Width: 1.2 to 2.5 in (30 to 64 mm)
Length: 0.8 to 7.9 in (20 to 200 mm)

 Label Roll:
Inside diameter: 1.6 in (40 mm) min
Outside diameter: 3.9 in (100 mm) max

Label Backing Paper:
Width: Up to 2.6 in (66 mm)

Power Supply:
AC100 to 240 V, 50/60 Hz

Power Consumption:
Stand-by: 50 W
In operation: 120 W

Classification:
NTEP CC 07-099
UL listed

Warranty:
One-year limited

Options

109366 Retail Scale,Uni-7 Bench 15 x 0.005lb / 30 x 0.01lb RF Kit, 115VAC Ishida
109367 Retail Scale,Uni-7 Pole 15 x 0.005lb / 30 x 0.01lb RF Kit, 115VAC Ishida
155266 Retail Scale, Uni-7 Bench 60 x 0.02lb, RF, 115VAC, Ishida
155267 Retail Scale, Uni-7 Pole 60 x 0.02lb, RF, 115VAC, Ishida
161937 Retail Scale, Uni-7 Bench 15 x 0.005lb/30 x 0.01lb Wired LAN, 115VAC, Ishida
109368 Retail Scale,Uni-7 Bakery RF Kit, Printer Only Ishida

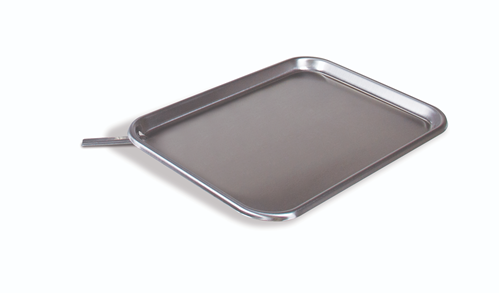

46916 Retail Scale OPT,Produce Platter 11-1/2 in Deep x 17 in Wide Ishida
46917 Retail Scale OPT,Fish Platter 11-1/2 in Deep x 17 in Wide Ishida
110996 Retail Scale OPT,Label Cassette UNI-7, Replacement or Additional w/Special Front Plate For UNI-7H units, Order Black Cassette PN 190565 Ishida
119030 USB Flash Drive-1GB Branded RLWS and Ishida, Uni-7 black
120810 Option, Scanner LS2208 General purpose barcode scanner, Symbol, Uni-7 Ishida
120811 Cable,LS9208 USB for use with LS2208 scanner, Symbol, Uni-7, Ishida
120812 Option,Cash Drawer Black powder coat, ABS 5 coin/ 5 bill removable money tray ABS 5 coin/ 5 bill removable money tray 18.8inW x 19.7inL x 3.94inH, 28lbs UNI-7 Ishida
91870 Option,Compact Flash Card 32mb Ishida CF
105346 Label,Roll Retail Blank DTL 64mm x 85mm (2.52 x 3.34) Small Core 425 LPR 12 RPC Ishida
167774 Cover,In Use Operator Controller Uni-5 Uni-7 Ishida
174110 Card, SD 2GB Uni-7, WM-Ai, IP-Ai Ishida
