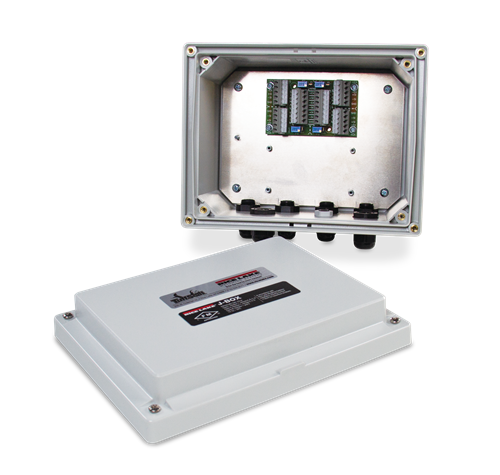

JB4EP and JB4EPT TuffSeal Excitation Trim Junction Box

$0.00

Ideal for use as a sub-junction box in a multiple modular system, the JB4SP TuffSeal® signal trim junction box sums two or four single load cell outputs with the potential to expand through the included expansion port. The Fiberglass Reinforced Polyester (FRP), NEMA Type 4X enclosure is optimal protection against harsh environments. The JB4SP TuffSeal signal trim junction box is ideal for use in tank and hopper scale applications.

Download product PDF
Category:

Features

  • Jumpers to enable/disable a load cell
  • PreVent™ breather vent
  • Conformal coated circuit board
  • Number of cells: two, three or four single cells
  • Expansion port
Applications
  • Tank and hopper scales

Options

Part # Description
91780 J-Box,JB4SP 4 Channel Signal Trim with Expansion, Polycarbonite Nema 4 FM Approved
92762 J-Box,JB4SPT 4 Channel Signal Trim with expansion, Polycarbonite Nema 4 with transient protection
88958 Board,4 Channel ST Signal Trim w/Expansion FM
89894 Board ASSY,Transient GDT Summing Box transient protection board
165272 Enclosure,JB4SP/SPT Only JB4SP/SPT/EP/EPT Junction Box Enclosure w/o Cord Grips and Filter. Includes Backplate, Cover and Gasket.
