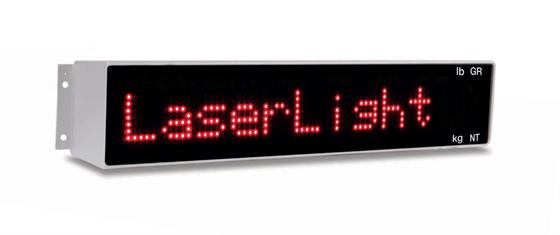

LaserLight M-Series Messaging Remote Display


For applications both indoors and out, the LaserLight M-Series messaging remote display vividly displays or scrolls alphanumeric messages with bright red 2.75 in characters.

Download product PDF


? Available with 8-?and 12-character display
? 2.75 in high-intensity red character (discrete LED)
? Four annunciators for gross, net, lb, kg
? Auto Learn mode of communication protocols
? Display messages scroll, slide and flash
? Hold displayed weight (demand input)
? Software selectable standstill mode, no updates while in motion
? Software configuration menu
? Durable weather-tight enclosure
? Adjustable daylight/night intensity
? Non-glare contrast filtered lens
? Mirror (reverse image) function
? RS-232, 20mA?and RS-485 communications
? Auto sensing 115/230 VAC power supply
? Porous polyethylene breather vent


2.75 in digit; 5 x 7 dot matrix using discrete oval precision optical performance red LED lamps
Contrast enhanced optical filtering lens
1- or 2-place decimal or comma indication
4 annunciators for GR, NT, lb, kg
Input Interface:
RS-232, RS-485, 20 mA current loop (active or passive, switch selectable)
Maximum Veiwing Distance:
150 ft (50 m)
Output Interface:
Independently configurable echo out port, RS-232 or 20 mA current loop (active or passive, switch selectable)

Input Data Format:
Baud Rate: 1200, 2400, 4800, 9600, and 19200 self learning or
software selectable
Character Format: 7 or 8 data bits; even, odd, or no parity; 1 or 2 stop bits, self learning or software selectable
Continuous or out-of-motion only; software selectable
Power Consumption:
8-character: 21 watt
12-character: 27 watt
Time Option:
Software enable/disable, 12- or 24-hour format
Date Option:
Software enable/disable, US or ISO format

Temperature Option:
Software selectable ?F or ?C, temperature probe automatically detected
Weatherproof, mild steel, powder coated
8-character:16 lb (7 kg)
12-character: 22 lb (10 kg)
Operating Temperature Range:
0?F to 120?F (-18?C to 48.8?C)
Two-year limited warranty
UL/cUL on specific part numbers


Part #?85137 Product DescriptionDisplay,Remote 8 Digit 2.5 Inch LED Survivor LaserLight 115/230VAC Mild Steel Painted Enclosure
Part #?85152 Product DescriptionDisplay,Remote 12 Digit 2.5 inch LED Survivor LaserLight 115/230VAC Mild Steel Painted Enclosure
Part #?Consult Product DescriptionLaserLight 3M8 8-character, marked UL/cU
Part #?Consult Product DescriptionLaserLight 3M12 12-character, marked UL/cUL
