Home / Load Cells / Load Pins / Load Pin – 2 Inch, 20K Alloy Steel, Environmentally Sealed
Load Pin – 2 Inch, 20K Alloy Steel, Environmentally Sealed $ 0.00
Download product PDF
Features

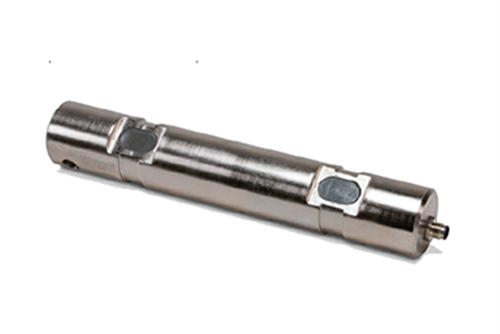

Load Pin – 2 Inch, 20K Alloy Steel, Environmentally Sealed
This 2-inch load pin is used in Rice Lake’s Loadrunner kits and semi trailer landing gear. This load pin can be paired with load and support collars for applications that have pivot or rotation requirements.
Specifications
Full Scale Output:
1.3 mV/V
Material/Finish:
Alloy steel
Temperature:
14 °F to 104 °F (-10 °C to 40 °C)
Rated Excitation:
15 VDC (5 to 10 V recommended)
Insulation Resistance:
500 megohms at 50 VDC
Seal Type:
Environmentally sealed
Connector Type:
Turck, M12 4-pin male
Connection Pin Out:
Pin 1 – Excitation +
Pin 2 – Signal +
Pin 3 – Excitation –
Pin 4 – Signal –
Warranty:
One-year limited
