Loop Detectors

$0.00

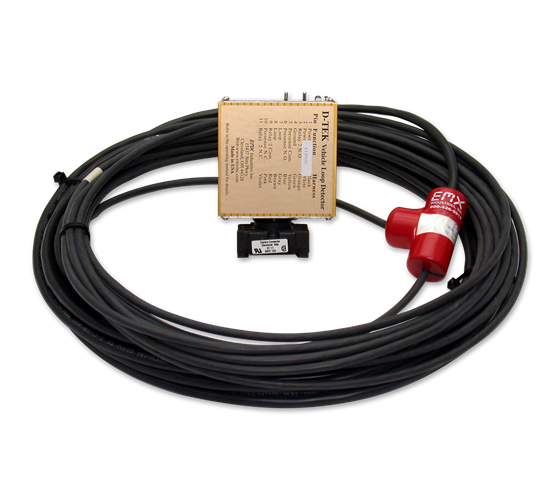

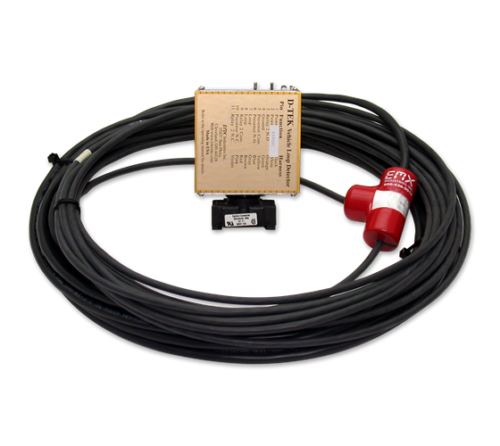

Loop detectors from Rice Lake are easily installed below ground at the entry or exit of your truck scale to detect vehicle movement.

Download product PDF
Category:

Features

  • Loop diagnostics
  • Loop isolation transformer
  • Aluminum RF shield housing
  • Surge protection
  • Loop frequency counter
  • 10 gold-plated sensitivity controls
  • Eight gold-plated function controls
  • Six gold-plated controls for frequency, reset and?frequency counter
  • Two high-intensity LED indicators
  • Two relays?relay 2 is pulse or presence

EMX Lite Preformed Loops

  • Rugged and flexible TPE tubing
  • Electronic lightning protection of vehicle detectors
  • Comes standard with 50 ft of twisted and jacketed lead-in wire
  • Vehicle detection loop is constructed of stranded wire conductors with thermoplastic elastomer insulation jacketing
  • Outer shell is flexible nonmetallic 0.26 in tubing
  • Two relays?relay 2 is pulse or presence
  • Loop installation requires backer rod and epoxy sealant provided by others

Specifications

Vehicle Loop Detector Power:
The detector is available in the following voltages: 12 VAC/DC, 24VAC, 24VDC, 110 VAC, 220 VAC. Maximum current draw 100mA

Low Power:
Detector is available with maximum current draw of 60mA

Temperature:
-40 to 180?F?(-40 to 82? C)

Enclosure:
Extruded anodized aluminum,
(H x W x D) 3.25 x 2.56 x 3.65in (83 x 40 x 90mm)

Output Relays:
5A/125 VAC standard version, 1A/125 VAC low current version

Connector:
86CP11 compatible with 11-Pin Octal DIN-rail mountable socket or wire harness

EMX Lite Preformed loops Operating Temperature:
-60 to 260?F?(-51 to 126? C)

Overall Diameter of Loop Wire:
0.26in

Loop Dimensions:
4 x 6ft thru 4 x 12ft standard, custom sizes available

Lead-in-Wire:
50ft long, twisted wire in PVC jacket

Loop Wire Approvals:
UL subject 13, Type PLTC 300V, 90C passes IEEE-328,210,000, BTU Flame Test
Pennsylvania, Bureau of Deep Mine Safety, Approval P-MWMS-1-85

Models

Part #?Consult Product DescriptionRelay box
Part #?171093 Product DescriptionAssembly, Loop Detector Dual Loop Detectors And Terminals For Wiring. Lead Wires From Loops,Power Source and Signal.
Part #?78986 Product DescriptionLoop,Vehicle Detection Preformed, 4 ft x 8 ft Loop, 50 ft Lead In Wire
Part #?86758 Product DescriptionLoop,Vehicle Detection Preformed, 4 ft x 10 ft Loop, 50 ft Lead In Wire
Part #?86601 Product DescriptionKit,Loop Vehicle Detector Includes Power Supply / Detector And 4 ft x 8 ft Loop With 50 ft Lead In Wire
Part #?86759 Product DescriptionKit,Loop Vehicle Detector Includes Power Supply / Detector And 4 ft x 10 ft Loop With 50 ft Lead In Wire
