Features
-
<liOne or four load cells (as noted)
NTEP Certified (up to 5000e) and high resolution 30,000 d versions available
Compatible with all Rice Lake and Combics indicators
10 or 20 ft platform cablels

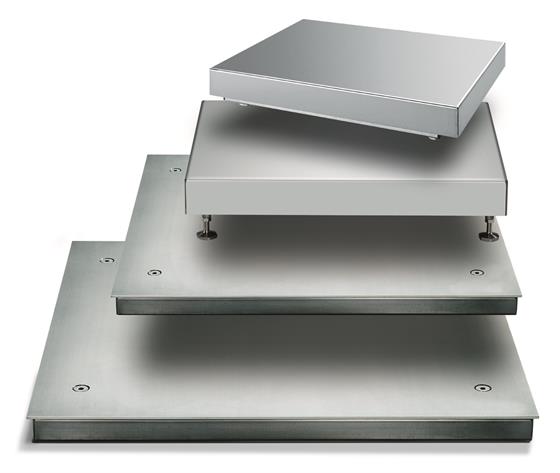

Minebea Intec Combics Bench and Floor Platforms
$0.00
For cost-effective, industrial weighing, the Combics weighing platform comes in a choice of mild or stainless steel and a complete selection of pit frames for flush mounting.
NTEP Certified (up to 5000e) and high resolution 30,000 d versions available
Compatible with all Rice Lake and Combics indicators
10 or 20 ft platform cablels
Specifications
Cable Length:
10 ft/3 m-up to 1,000 lb 30 x 30 in
20 ft/6 m 1,000 lb and above 36 x 36 in
Operating Temperature:/strong>
14? F to 104? F (-10? C to 40? C)
Height:
Adjustable feet
Warranty:
Two-year limited warranty
Accessories: One-year limited warranty
Models
| Part #?102285 | Product DescriptionBase,CAPP1U-10CC-LU Combics, 15lb x 0.0005lb (6kg x 0.0002kg), 10In x 10In, Painted | |
| Part #?102286 | Product DescriptionBase,CAPP1U-20CC-LU Combics, 30lb x 0.001lb (15kg x 0.0005kg), 10In x 10In, Painted NEMA4/IP65 | |
| Part #?102287 | Product DescriptionBase,CAPP1U-50CC-LU Combics, 60lb x 0.002lb (30kg x 0.001kg), 10In x 10In, Painted NEMA4/IP65 | |
| Part #?102288 | Product DescriptionBase,CAPP1U-50DD-LU Combics, 60lb x 0.002lb, (30kg x 0.001kg), 12In x 12In, Painted NEMA4/IP65 | |
| Part #?102289 | Product DescriptionBase,CAPP1U-50EE-LU Combics, 60lb x 0.002lb, (30kg x 0.001kg), 18In x 18In, Painted NEMA4/IP65 | |
| Part #?102291 | Product DescriptionBase,CAPP1U-100DD-LU Combics,150lb x 0.005lb, (60kg x 0.002kg), 12In x 12In, Painted NEMA4/IP65 | |
| Part #?102292 | Product DescriptionBase,CAPP1U-100EE-LU Combics,150lb x 0.005lb, (60kg x 0.002kg), 18In x 18In, Painted NEMA4/IP65 | |
| Part #?102294 | Product DescriptionBase,CAPP1U-100GG-LU Combics, 150lb x 0.005lb, (60kg x 0.002kg), 24In x 24In, Painted NEMA4/IP65 | |
| Part #?102296 | Product DescriptionBase,CAPP1U-100HH-LU Combics, 150lb x 0.005lb, (60kg x 0.002kg), 30In x 30In, Painted NEMA4/IP65 | |
| Part #?102297 | Product DescriptionBase,CAPP1U-200EE-LU Combics, 200lb x 0.02lb, (100kg x 0.005kg), 18In x 18In, Painted NEMA4/IP65 | |
| Part #?102299 | Product DescriptionBase,CAPP1U-250GG-LU Combics, 300lb x 0.01lb, (150kg x 0.005kg), 24In x 24In, Painted NEMA4/IP65 | |
| Part #?102301 | Product DescriptionBase,CAPP1U-250HH-LU Combics, 300lb x 0.01lb, (150kg x 0.005kg), 30In x 30In Painted, NEMA4/IP65 | |
| Part #?102302 | Product DescriptionBase,CAPP1U-500GG-LU Combics, 600lb x 0.02lb (300kg x 0.01kg), 24In x 24In, Painted NEMA4/IP65 | |
| Part #?102304 | Product DescriptionBase,CAPP1U-500HH-LU Combics, 600lb x 0.02lb (300kg x 0.01kg), 30In x 30In, Painted NEMA4/IP65 | |
| Part #?102306 | Product DescriptionBase,CAPP1U-1000HH-LU Combics, 1500lb x 0.05lb, (600kg x 0.02kg), 30In x 30In, Painted, NEMA4/IP65 |
| Part #?104313 | Product DescriptionPit Frame,Combics 30x24in Painted | |
| Part #?104314 | Product DescriptionPit Frame,Combics 30x30in Painted | |
| Part #?104315 | Product DescriptionPit Frame,Combics 36x36in Painted | |
| Part #?104320 | Product DescriptionPit Frame,Combics 30x24in Stainless Steel | |
| Part #?104322 | Product DescriptionPit Frame,Combics 30x30in Stainless Steel | |
| Part #?104323 | Product DescriptionPit Frame,Combics 36x36in Stainless Steel | |
| Part #?104324 | Product DescriptionPit Frame,Combics 48x48in Stainless Steel |
| Part #?102429 | Product DescriptionBase,CAPS1U-10CC-LU Combics, 15lb x 0.0005lb (6kg x 0.0002kg), 10In x 10In, Stainless Steel, NEMA4X/IP67 | |
| Part #?102430 | Product DescriptionBase,CAPS1U-20CC-LU Combics, 30lb x 0.001b (15kg x 0.0005kg) 10In x 10In, Stainless Steel, NEMA4X/IP67 | |
| Part #?102431 | Product DescriptionBase,CAPS1U-50CC-LU Combics, 60lb x 0.002lb (30kg x 0.001kg) 10In x 10In, Stainless Steel, NEMA4X/IP67 | |
| Part #?102432 | Product DescriptionBase,CAPS1U-50DD-LU Combics, 60lb x 0.002lb (30kg x 0.001kg), 12In x 12In, Stainless Steel, NEMA4X/IP67 | |
| Part #?102433 | Product DescriptionBase,CAPS1U-100DD-LU Combics, 150lb x 0.005lb (60kg x 0.002kg), 12In x 12In, Stainless Steel, NEMA4X/IP67 | |
| Part #?102434 | Product DescriptionBase,CAPS1U-50EE-LU Combics, 60lb x 0.002lb (30kg x 0.001kg), 18In x 18In, Stainless Steel, NEMA4X/IP67 | |
| Part #?102435 | Product DescriptionBase,CAPS1U-100EE-LU Combics, 150lb x 0.005lb (60kg x 0.002kg), 18In x 18In, Stainless Steel, NEMA4X/IP67 | |
| Part #?102436 | Product DescriptionBase,CAPS1U-200EE-LU Combics, 200lb x 0.01lb (100kg x 0.005kg), 18In x 18In, Stainless Steel, NEMA4X/IP67 | |
| Part #?102458 | Product DescriptionBase,CAPS4U-100GG-LU Combics, 150lb x 0.005lb (60kg x 0.002kg), 24In x 24In, Stainless, NEMA4X/IP67 | |
| Part #?102460 | Product DescriptionBase,CAPS4U-250GG-LU Combics, 300lb x 0.01lb (150kg x 0.005kg) 24In x 24In, Stainless, NEMA4X/IP67 | |
| Part #?102461 | Product DescriptionBase,CAPS4U-500GG-LU Combics, 600lb x 0.02lb (300kg x 0.01kg), 24In x 24In Stainless, NEMA4X/IP67 | |
| Part #?102466 | Product DescriptionBase,CAPS4U-100HH-LU Combics, 150lb x 0.005lb (60kg x 0.002kg), 30In x 30In Stainless, NEMA4X/IP67 | |
| Part #?102467 | Product DescriptionBase,CAPS4U-250HH-LU Combics, 300lb x 0.01lb (150kg x 0.005kg) 30In x 30In Stainless, NEMA4X/IP67 | |
| Part #?102468 | Product DescriptionBase,CAPS4U-500HH-LU Combics, 600lb x 0.02lb (300kg x 0.01kg), 30In x 30In Stainless, NEMA4X/IP67 | |
| Part #?102469 | Product DescriptionBase,CAPS4U-1000HH-LU Combics, 1500lb x 0.05lb (600kg x 0.02kg), 30In x 30In Stainless, NEMA4X/IP67 | |
| Part #?102470 | Product DescriptionBase,CAPS4U-1000KK-LU 1500lb x 0.05lb (600kg x 0.02kg), 36In x 36In Stainless, NEMA4X/IP67 | |
| Part #?102471 | Product DescriptionBase,CAPS4U-2500KK-LU Combics, 3000lb x 0.1lb (1500kg x 0.05kg), 36In x 36In Stainless, NEMA4X/IP67 | |
| Part #?102472 | Product DescriptionBase,CAPS4U-5000KK-LU Combics, 6000lb x 0.2lb (3000kg x 0.1kg), 36In x 36In Stainless, NEMA4X/IP67 | |
| Part #?102473 | Product DescriptionBase,CAPS4U-1000NN-LU Combics, 1500lb x 0.05lb (600kg x 0.02kg), 48In x 48In Stainless, NEMA4X/IP67 | |
| Part #?102474 | Product DescriptionBase,CAPS4U-2500NN-LU Combics, 3000lb x 0.1lb (1500kg x 0.05kg), 48In x 48In Stainless, NEMA4X/IP67 | |
| Part #?102475 | Product DescriptionBase,CAPS4U-5000NN-LU Combics, 6000lb x 0.2lb (3000kg x 0.1kg), 48In x 48In Stainless, NEMA4X/IP67 |
