Minebea Intec Combics Explosion Proof Bench and Platform Scales

$0.00

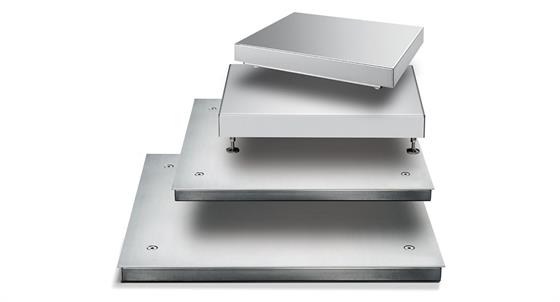

Minebea Intec Combics explosion proof bench and platform scales are completely customizable industrial scale systems, ideal for counting, batching, sorting and checkweighing applications.

Download product PDF
Categories: ,

Features

    FM Approved: Classes 1,2,3, Division 1, Groups ABCDEGFT4, U.S. and Canadian hazardous areas, when used with CIX53-U
    Can be used in areas where explosive gas and dust mixtures occur
    Documentation to verify intrinsic safety available upon request
    Completely constructed with AISI 304 stainless steel
    All units are built for easy cleaning and disinfection and meet HACCP and FDA requirements for the food industry
    Load cells are hermetically sealed, IP68 protection rated
    Load cell cables are 10 ft (for bases up to 30 x 30 in) or 20 ft (for bases 36 x 36 in and larger)
    NEMA Type 4/IP67 protection rated
    Pit frames for flush mounting available
    High resolution 30,000 d
    Applications
    Pharmaceutical, chemical, electronics, food processing, precious metals, metal production and processing
    Regulatory Compliance: NEMA, HACCP, FDA, GLP/GMP*, FM>

Specifications

Cable Length:
Up to 30 x 30 – 10 ft
36 x 36 and over – 20 ft

Operating Temperature:
14? F to 104? F

Ingress Protection Rating:
NEMA Type 4/IP67

Indicator Option:
CIXS3-U

Warranty:
Two-year limited warranty
Accessories: One-year limited warranty

Approvals:
FM approved Classes 1,2,3, Division 1, Groups ABCDEGFT4, US and Canadian
hazardous areas, when used with CISX3-U or FCT01-X indicator

Models

Part #?100919 Product DescriptionBase,CAPXS1U-10CC Combics SS Explosion Proof, 10 X 10 in, 6 kg X 0.0002 kg (15lb x 0.0005lb) FM Approved Class 1,2,3, Division 1, Groups ABCDEFGT4 Constructed of 304 SS HACCP and FDA Accepted
Part #?100920 Product DescriptionBase,CAPXS1U-20CC Combics SS Explosion Proof, 10 X 10 in, 15 kg x 0.0005 kg (30lb x 0.001lb) FM Approved Class 1,2,3, Division 1, Groups ABCDEFGT4 Constructed of 304 SS HACCP and FDA Accepted
Part #?100921 Product DescriptionBase,CAPXS1U-50CC Combics SS Explosion Proof, 10 x 10 in, 30 kg x 0.001 kg (60lb x 0.002lb) FM Approved Class 1,2,3, Division 1, Groups ABCDEFGT4 Constructed of 304 SS HACCP and FDA Accepted
Part #?100922 Product DescriptionBase,CAPSX1U-50DD EX Combics, SS Explosion Proof, 12 x 12 in, 30 kg x 0.001 kg (60lb x 0.002lb) FM Approved Class 1,2,3, Division 1, Groups ABCDEFGT4 Constructed of 304 SS HACCP and FDA Accepted
Part #?100923 Product DescriptionBase,CAPXS1U-100DD Combics SS Explosion Proof, 12 X 12 in, 60 kg x 0.002 kg (150lb x 0.005lb) FM Approved Class 1,2,3, Division 1, Groups ABCDEFGT4 Constructed of 304 SS HACCP and FDA Accepted
Part #?100924 Product DescriptionBase,CAPXS1U-50EE Combics SS Explosion Proof, 18 x 18 in, 30 kg x 0.001 kg, (60lb x 0.002lb) FM Approved Class 1,2,3, Division 1, Groups ABCDEFGT4 Constructed of 304 SS HACCP and FDA Accepted
Part #?100925 Product DescriptionBase,CAPXS1U-100EE Combics SS Explosion Proof, 18 X 18 in, 60 kg x 0.002 kg (150lb x 0.005lb) FM Approved Class 1,2,3, Division 1, Groups ABCDEFGT4 Constructed of 304 SS HACCP and FDA Accepted
Part #?100926 Product DescriptionBase,CAPXS1U-200EE Combics SS Explosion Proof, 18 X 18 in, 100 kg x 0.005 kg (200lb x 0.01lb) FM Approved Class 1,2,3, Division 1, Groups ABCDEFGT4 Constructed of 304 SS HACCP and FDA Accepted
Part #?100934 Product DescriptionBase,CAPXS4U-250GG Combics SS Explosion Proof, 24 X 24 in, 150 kg x 0.005 kg, (300lb x 0.01lb) FM Approved Class 1,2,3, Division 1, Groups ABCDEFGT4 HACCP And FDA Compliant
Part #?100935 Product DescriptionBase,CAPXS4U-500GG-LU Combics, SS Explosion Proof Platform, 24 x 24 in, 300kg x 0.01kg (600lb x 0.02lb) FM Approved Class 1,2,3, Division 1, Groups ABCDEFGT4 HACCP And FDA Compliant
Part #?100943 Product DescriptionBase,CAPXS4U-500HH Combics SS Explosion Proof, 30 X 30 in, 300 kg x 0.01 kg (600lb x 0.02lb) FM Approved Class 1,2,3, Division 1, Gorups ABCDEFGT4 HACCP and FDA Compliant
Part #?100944 Product DescriptionBase,CAPXS4U-1000HH Combics SS Explosion Proof, 30 X 30 in, 600 kg x 0.02 kg, (1500lb x 0.05lb) FM Approved Class 1,2,3, Division 1, Gorups ABCDEFGT4 HACCP and FDA Compliant
Part #?100945 Product DescriptionBase,CAPXS4U-1000KK Combics SS Explosion Proof, 36 X 36 in, 600 kg x 0.02 kg, (1500lb x 0.05lb) FM Approved Class 1,2,3, Division 1, Groups ABCDEFGT4 HACCP and FDA Compliant
Part #?100946 Product DescriptionBase,CAPXS4U-2500KK Combics SS Explosion Proof, 36 X 36 in, 1500 kg x 0.05 kg (3000lb x 0.1lb) FM Approved Class 1,2,3, Division 1, Groups ABCDEFGT4 HACCP and FDA Compliant
Part #?100947 Product DescriptionBase,CAPXS4U-5000KK Combics SS Explosion Proof, 36 X 36 in, 3000 kg x 0.1 kg (6000lb x 0.2lb) FM Approved Class 1,2,3, Division 1, Groups ABCDEFGT4 HACCP and FDA Compliant
Add to Quote
Part #?100949 Product DescriptionBase,CAPXS4U-2500NN Combics SS Explosion Proof, 48 X 48 in, 1500 kg x 0.05 kg (3000lb x 0.1lb) FM Approved Class 1,2,3, Division 1, Groups ABCDEFGT4 HACCP and FDA Compliant
Add to Quote
Part #?100950 Product DescriptionBase,CAPXS4U-5000NN Combics SS Explosion Proof, 48 X 48 in, 3000 kg x 0.1 kg, (6000lb x 0.2lb) FM Approved Class 1,2,3, Division 1, Groups ABCDEFGT4 HACCP and FDA Compliant
