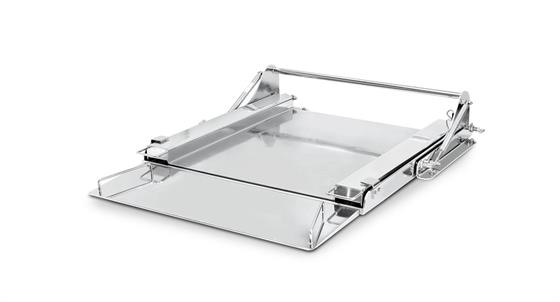

Minebea Intec IF Series Explosion Proof Weighing Platform Scales

$0.00

Minebea Intec IF Series explosion-proof floor scales are flatbed scales available in various sizes, designs, weighing capacities and resolutions.

Download product PDF
Categories: ,

Features

  • Capacities from 150 kg to 3,000 kg with resolutions up to 30,000 d
  • Ultra low profile: standard platform height is 35 mm; optional heights available as low as 25 mm
  • Material/surface finish: 304 bead-blasted stainless steel
  • Drive-on ramp included with every platform
  • No pit required
  • Convenient for application-oriented weighing systems from processing to the chemical industry
  • Standard configuration: AISI 304 stainless steel



Specifications

Ingress Protection Rating:
IP68

Load Cells:
Four hermetically sealed IP68

Cable Length:
19.7 ft (6 m)

Regulatory Compliance:
HACCP, FDA, Class 10,000 clean rooms (US Federal Standard 209D)

Warranty:
Two-year limited warranty

Approvals:
FM approved, IFXS4 series, are certified for use in Class 1,2,3, Div. 1, Groups ABCDEFT4 (Verification of Intrinsic Safety included; also covers any explosionprotected Minebea components combined with this platform series)

Options

Applications
  • Pharmaceutical, chemical, electronics, food processing, precious metals, metal production and processing
Optional Configurations
  • Electro-polished finish
  • AISI 304 electro-polished stainless steel platform
  • AISI 316Ti electro-polished stainless steel platform
  • Ingenious manually-operated lifting mechanism option (patented system) for effortless raising of the platform to facilitate cleaning underneath
  • R2: Cold rolled AISI 316Ti stainless steel, electro-polished
  • R6: AISI 304 2b stainless steel, electro-polished
  • T4: Stop bar
  • T5: Tow bar and stop bar
  • T6: Two handles and two rollers
  • T7: Retractable wheels (reduces effective resolution to 15,000 dd)
  • T9: Additional bottom plate
  • T15: Second ramp
  • T14: Integrated column
  • T13: Four handles

Models

1,320 lb Capacity

2,200 lb Capacity

3,300 lb Capacity

330 lb Capacity

6,600 lb Capacity

660 lb Capacity
