Minebea Intec PR5220 TCP/IP Ethernet Transmitter

$0.00

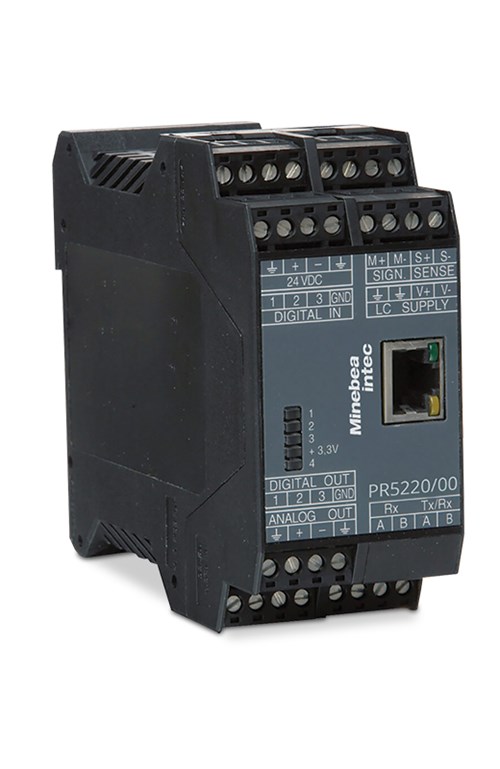

The PR5220 Ethernet transmitter sets new standards in process instrumentation. The standard Ethernet TCP/IP interface enables easy transmission of information to superordinate systems.

Download product PDF

Features

  • Configuring via VNC
  • OPC server
  • Full digital signal processing with up to 4.8 Mio divisions internal resolution
  • SmartCalibration feature for fast calibration even without weights
  • Requires supply voltage of 24 VDC
  • IP20 housing, DIN Rail Mount
  • Verifiable with remote display up to 10,000 e, CL III (EN 45501, OIML R76)
  • Precision analog output
  • Serial RS-485/422 interface
  • CD supplied with software suite
  • 10,000 divisions at six samples per second

Specifications

Housing:
Housing IP20 according to DIN 40050
Mounting on DIN Rail 35 mm according
to DIN 46277
Material: polyamide RoHS conform

Dimensions:
(L × W × H)
Version 00: 3.9 × 4.6 × 1.77 in
(99 × 116 × 45 mm)
Versions 01, 04, 06, 07: 3.9 × 4.6 × 2.68 in (99 × 116 × 68 mm)

Supply Voltage:
24 VDC, ±20%

Power Consumption:
6 W / 8 W (Versions /01, /04, /06, /07)

Control Outputs:
Quantity: 3 opto-isolated output, passive
Voltage: max. 30 VDC:
Current: max. 30 mA
Functions: Limits, weight status

Control Inputs:
Quantity: 3, opto-isolated input, passive
Functions: zero setting, taring
Voltage: max. 30 VDC
Current: max. 10 mA

In-Output:
All I/O circuits fully galvanically isolated from sensor input and supply

Load Cell Connection:
All strain gauge load cells; 6 or 4 wire connection

Load Cell Supply:
12 V, short-circuit proof. External load cell supply possible

Minimum Load Impedance:
Min. 75 ohm e.g. 6 load cells with 600 ohm or 4 load cells with 350 ohm

Measuring Principle:
Measuring amplifier: Delta-Sigma converter
Measuring time: min 5 ms – max. 1600 ms

Input Range:
7.5 mV (appr. 4.8 Mio. div.)
Usable resolution: 0.2 μV/d

Input Signal:
Measuring signal: 0 to 36 mV (for 100 % nominal load)

Linearity:
< 0.002 %

Temperature Effects:
Zero: TK0 m < 0.02 μV/K RTI
Span: TKspan < +/- 2 ppm/K

Digital Filter for Load Cell:
4th order (low pass), Bessel, aperiodic or Butterworth

Ethernet Interface (functions):
Ethernet IP and Modbus/TCP
Definition of an IP address: – AutoIP; – DHCP Server classification; – manual entering of an IP address
Automatic detection of signal transmission and corresponding change over (cross-over or patch cable) Webservice via SOAP|UPnP (Simple Object Access Protocol) Synchronal Modbus UDP

Status Indicator:
Status LEDs to signal operation and error conditions.

Analogue Output:
0 to 10 or 4-20 mA, internal resolution 16-bit, usable step-width: 0.5 μA max. load 500 O; user configurable

Serial Interfaces:
RS422/485 via screw terminals
Protocol: Remote display, SMA and Minebea digital scales (XBPI–protocol)

Electrical Connections:
All electrical connections via modular screw terminals for 2.5 mm 2 max. System Phoenix/COMBICO

Temperature:
WandM: 14 °F to 104 °F (–10 °C to 40 °C)
Operation: 14 °F to 122 °F (–10 °C to 50 °C)
Storage: -40 °F to 158 °F (–40 °C to 70 °C)

Weight:
Version 00:
Net: 0.29 kg
Versions 01, 04, 06, 07
Net: 0.35 kg

Approvals:
10,000 e class III acc. to EN 45501; according to. OIML R76, min. verification interval: 0.5 μV/e

Options

158856 Transmitter,PR5220/00 Minebea, Ethernet TCP/IP, 4-20mA
158857 Transmitter,PR5220/01 Minebea, Ethernet TCP/IP, 4-20mA, and Profibus DP
158858 Transmitter,PR5220/04 Minebea, Ethernet TCP/IP, 4-20mA, and DeviceNet
158859 Transmitter,PR5220/06 Minebea, Ethernet TCP/IP, 4-20mA, and ProfiNet
158891 Transmitter,PR5220/07 Minebea Ethernet TCP/IP, 4-20mA, and Ethernet IP
