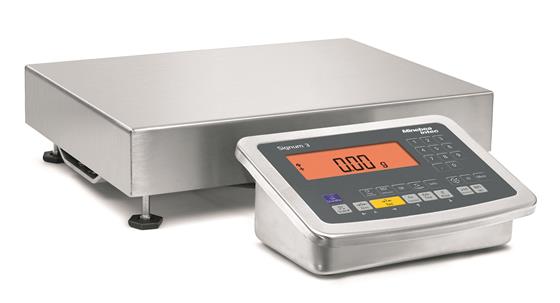

Minebea Intec Signum Series

$0.00

The Signum Series complete scale system provides the added flexibility of choosing a specific weighing technology, allowing you to customize resolution and performance for your specific needs.

Download product PDF
Category:

Features

  • The Signum is extremely rugged and resistant, and adapts perfectly to any ambient conditions in an industrial environment
  • Compact scale built as custom
  • Available in three indicator models – 6, 14 or 17 keys
  • Available in three weighing technologies – load cell, mechatronic or monolithic
  • Resolution 35,000 d to 350,000 d
  • Built-in motorized calibration weight (Signum Supreme)
  • RS-232 output
  • IP65

Specifications

Platform Size:
13.8 x 9.5 in (350.5 x 241.3 mm)

Power:
Multi-range, 110-240 V

Operating Temperature:
14? F to 104? F (-10? C to 40? C)

Measurement Technology:
SIWRDCP-Load cell signum regular
SIWADCP-Mechatronic cell-advanced
SIWSDCP-Monolythic-supreme



Cable Length:
Display: 6 ft (1.83 m) approximately

Warranty:
Two-year limited warranty
Accessories: one-year limited warranty

Options

31103 Paper,Printer YPP01 STD Size Roll,Fits All YDPxx-xxx Printers Internally, 5 Rolls per Pack
31106 Ribbon,Printer 6906918 for YDP021YDP03 Minebea
105607 Kit,Wall Mount Combics Tiltable SST YDH02CISUS
153218 Column,Signum DC bases Minebea YDH01P
155884 Column,BBP Bases Minebea Signum, YDH02P
36907 Balance OPT,Data Printer w/ Statistics and Time/Date Functions (Included Cable Fits RS232)
83248 Cable,Adapter Zener Barrier, YCC01-0016M3, 9.8 Ft, 12 pin round M to 25 pin D-Sub F 12-Pin Round Male to 25-Pin D-SUB (Female) Connector
155804 Cable,RS-232 9/25 pin D-SUB Female, 1.5m, Minebea YCC05-001M2

Models
Part #?103657 Product DescriptionMinebea,Signum SIWRDCP 6KG x .2G, Precision Lev 1 Indicator, IP65, RS-232
Part #?103658 Product DescriptionMinebea,Signum SIWRDCP 15KG X 0.5G, Precision Lev 1 Indicator, IP65, RS-232
Part #?103659 Product DescriptionMinebea,Signum SIWRDCP 35kg X 1G, Precision Lev 1 Indicator, IP 65, RS-232
Part #?103660 Product DescriptionMinebea,Signum SIWRDCP 60KG X 2G, Precision Lev 1 Indicator, IP 65, RS232
Part #?103665 Product DescriptionMinebea,Signum SIWADCP 7KG X 0.1G, Precision Industrial, Lev 1, IP65, RS-232
Part #?103666 Product DescriptionMinebea, Signum SIWADCP 7KG x 0.1G, Signum Precision Lev 3,Advanced Applications, IP65, RS-232 SIWADCP-V4
Part #?151410 Product DescriptionMinebea,Signum SIWADCP -V24, Level 1, 16 kg x 0.2 g, RS-232, US Power Cord
Part #?151372 Product DescriptionMinebea,Signum SIWSBBP -V16, 3kg x 0.01g, Lev 1, IP65, RS232, US Power Cord
Part #?151373 Product DescriptionMinebea,Signum SIWSBBP -V17, 6kg x 0.01g, Lev 1, IP65, RS232, US power cord
Part #?151374 Product DescriptionMinebea,Signum SIWSDCP -V18, 16kg x 0.1g, Lev 1, IP65, RS232, US Power Cord
Part #?151375 Product DescriptionMinebea,Signum SIWSDCP -V19, 35kg x 0.1g, Lev 1, IP65, RS232, US Power Cord
Part #?151376 Product DescriptionMinebea,Signum SIWRDCP -V20, 6kg x 0.2g, Lev 3, IP65, RS232, US Power Cord
Part #?151377 Product DescriptionMinebea,Signum SIWRDCP -V21, 15kg x 0.5g, Lev 3, IP65, RS232, US Power Cord
Part #?151378 Product DescriptionMinebea,Signum SIWRDCP -V22, 35kg x 1g, Lev 3, IP65, RS232, US Power cord
Part #?151379 Product DescriptionMinebea,Signum SIWRDCP -V23, 60kg x 2g, Lev 3, IP65, RS232, US Power Cord
Part #?105853 Product DescriptionMinebea, Signum SIWADCP 35 kg X 0.5 g, Precision Industrial Lev 3 Indicator, Advanced Applications, IP65, RS232
Part #?105854 Product DescriptionMinebea, Signum SIWADCP 65KG X 1.0G, Precision Industrial Lev 3 Indicator, Advanced Applications, IP65, RS-232
Part #?151411 Product DescriptionMinebea,Signum SIWADCP -V25, Level 1, 35 kg x 0.5 g, RS-232, US Power Cord
