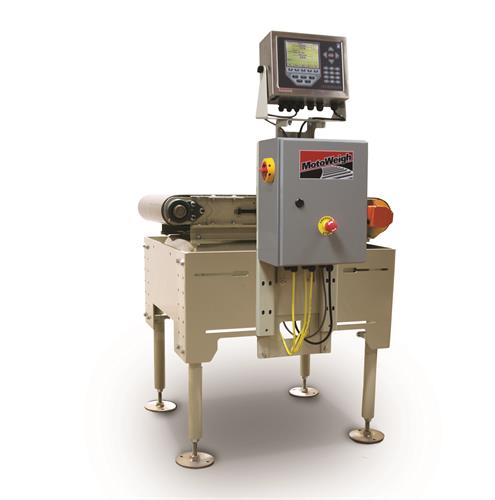

MotoWeigh IMW-HD Heavy-Duty In-Motion Conveyor Scale and Checkweigher


The MotoWeigh IMW-HD is a heavy-duty conveyor scale and checkweigher for in-motion weighing. Its industrial strength frame, flexure base and belting bring the IMW-HD to the heavy-duty class.

Download product PDF



  • Four levels of security
  • Real-time statistical information
  • Product report
  • Statistical report
  • Parameter report
  • User report
  • Store up to 1,000 different products
  • Five zone classification


  • Industrial mild steel powder coated frame
  • Adjustable conveyor height 2 in coarse adjustment from floor to top of belt is 26 to 40 ? 2.5 inches of fine adjustment or 38 to 52 in ? 2.5 in of fine adjustment with optional leg extension kit
  • Industrial belting Black PVC 120 V-Guide
  • Industrial scale

Available conveyor sizes and capacities

  • 14?in x 28?in 80 lb capacity conveyor scale
  • 18?in x 36?in 150 lb capacity conveyor scale
  • 24?in x 48?in 200 lb capacity conveyor scale
  • 36?in x 60?in 200 lb capacity conveyor scale


Mild steel, or NEMA Type 4X IP 66 304 SST non-direct food contact

Checkweigher or conveyor scale

Product Types:
Boxes, bags, trays, tubs, cups, buckets, totes

Container Weights:
Up to 200 lb
Resolution down to 0.05 lb or better (dependent on scale capacity)

Black PVC 120 with SST zipper splice for easy removal

1/2 HP 230 V 3 phase motorized drive pulley (may vary depending on capacity)

Up to 150 ft per minute

Power Configuration:
110 VAC single phase, 50/60 Hz
208, 230, 460 (3 phase)

Optional: UL 508

Two-year limited warranty
(excludes powertrain and wear parts)


One, three or five zone communication tower
Audible alarm (non-washdown only)
Pull cord E-stops
Portability package
Conveyor guide rails (round or flat)
Custom programming available
UL 508 control panel
Metal detection
Filling machine feedback
Ethernet IP
Power configuration 110, 208, 230 (single phase or 3 phase), 460 (3 phase)
1280 Controller

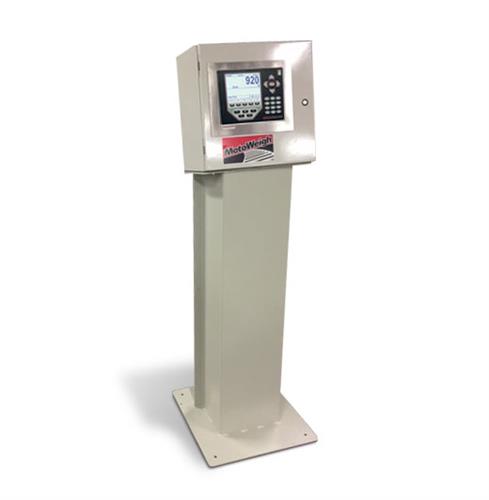

Pedestal for control panel
