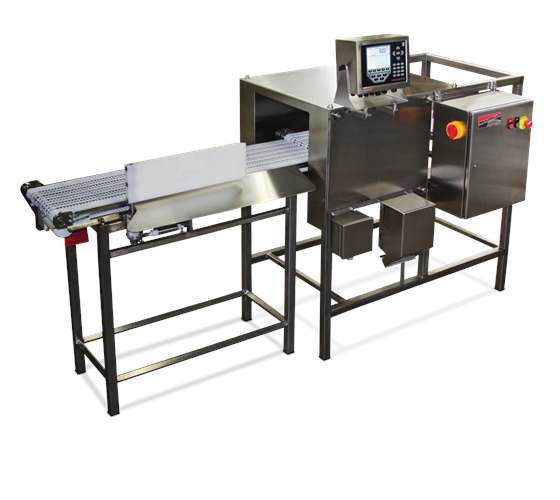

MotoWeigh IMW In-Motion Checkweighers and Conveyor Scales

$0.00

MotoWeigh in-motion weighing systems offer a broad selection of features and options to maximize efficiency.

Download product PDF
Category:

Features

Software
  • Four levels of security
  • Real-time statistical information
  • Product report
  • Statistical report
  • Parameter report
  • User report
  • Store up to 1,000 different products
  • Five?zone classification
Control Panel
  • Power disconnect with lock-out/tag-out
  • E-stop
  • VFD (variable frequency drive)
  • Motor overloads
Hardware
  • Square tube construction (SST or aluminum)
  • 32in?height from top of belt with ?2.5 inch of adjustment

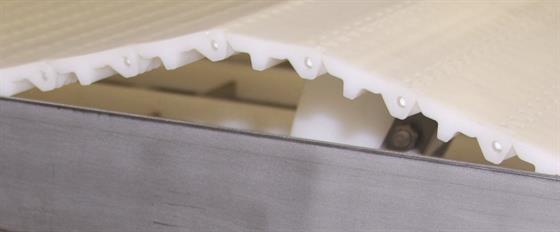

  • Modular belting
  • Drive on right?side of belt (looking down belt flow)
  • Control panel mounted on left?side of belt (looking down belt flow)

Specifications

Construction:
Stainless steel food-grade, stainless steel non-food-grade or aluminum non-food-grade

Configurations:
Checkweigher or conveyor scale

Speed:
Up to 240 ft per minute

Container Types:
Boxes, bags, pouches, trays, tubs, cups, blister packs, display packs, clam shells

Container Weights:
Up to 200 lb
Resolution down to 0.01 lb/5 g, or better (dependent on scale capacity)

Belts:
Interlox Habasit

Power Configuration:
110 VAC single phase, 60 Hz
230/460 VAC 3 phase, 60 Hz

Approvals:
Optional NTEP: 60 ppm at 2,000 divisions
Optional: UL 508

Warranty:
Two-year limited warranty (excludes powertrain and wear parts)

Options

Divert methods:
?Pneumatic pusher
Air blast
Drop conveyor
Paddle
Secondary diverter in series or parallel
One, three or five zone communication tower
Audible alarm (non-washdown only)
Draft shields
Drop chutes
Pull cord E-stops
Portability package (non-NTEP Certified only)
Conveyor guide rails (round or flat)
Custom programming available
Food-grade SST angle construction, NEMA Type 4X IP66 washdown systems
UL 508
Bar code scanner
Metal detection
NTEP Certified, Legal for Trade (up to 2,000 divisions and 60 ppm)
Filling machine feedback
Pacer belt infeed

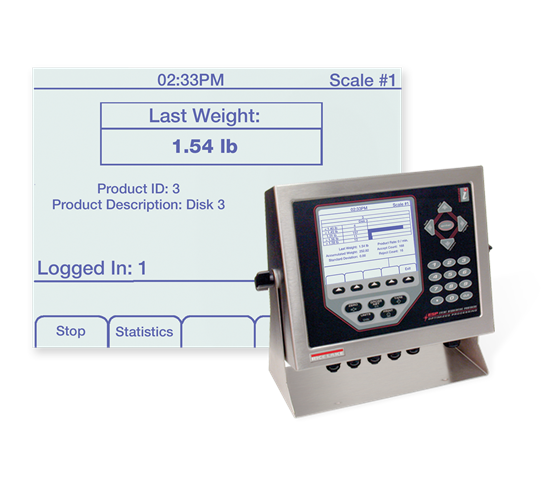

1280 controller (non-NTEP Certified only)
