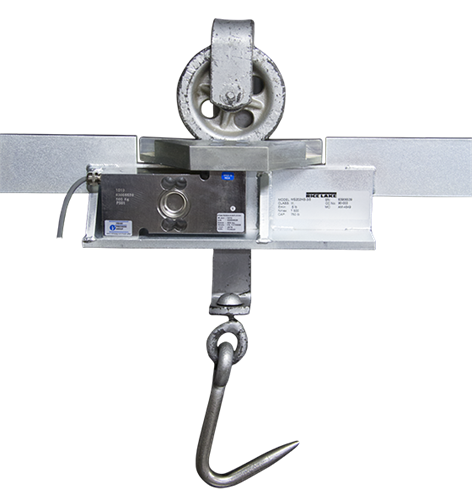

MS200 & MS202 Portable & Permanent Monorail

$0.00

The MS200 and MS202 portable and permanent monorail scale cancels out spring oscillation that may cause weighing errors.

Download product PDF
Category:

Features

  • 8 in?live-rail designed to weigh one trolley at a time
  • 750 x .5 lb resolution in both portable and permanent models
  • Available for rail sizes 3/8?x 2 1/2 in?or 1/2?x 2 1/2 in
  • Requires less than 41 in?of straight rail to install (14 in?between rail hangers for permanent model)
  • Zinc plated, steel construction
  • High accuracy, stainless steel load cell
  • 25 ft?of load cell cable for flexible installation
  • Slightly recessed live-rail for the trolley roller provides stable weighments

Specifications

Construction:
Zinc-plated steel construction, stainless steel hardware

Load Cell Construction:
Stainless steel

Bridge Resistance:
350 ohms nominal

Rated Output:
2 mV/V

Nonlinearity:
0.03% full scale

Approvals:
NTEP CC 90-003, Class III, nmax 1500
Measurement Canada *MS202 only

Warrenty:
One-year limited
