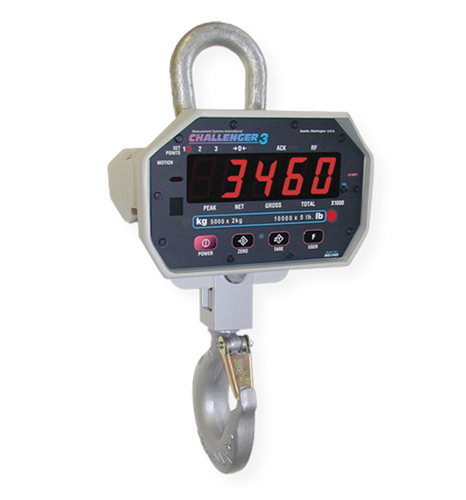

MSI-3460 Challenger 3 Crane Scale


MSI-3460’s latest instrumentation technology is the central enhancement of the Challenger 3, bringing industry-leading weighing features of previous Challenger designs to a whole new level.

Download product PDF


  • Crane unit with five-digit, 1.5 in (38 cm) LED display
  • Top lifting eye and bottom swivel hook
  • Lb/kg switch selectable
  • Six volt rechargeable battery and universal 115/230 VAC, 50/60 Hz battery charger (NA plug standard)
  • Meets or exceeds OSHA, ANSI, ASME and other safety design standards (5:1 Ultimate Safety Factor)


? (0.1% +1 d) of applied load

2000 to 3750 d standard (Up to 10,000 d available)

NEMA Type 4, IP65, powder coated cast aluminum

Lifting Eye & Hook:
Crosby or equivalent with 360? non-bearing swivel hook

Design Overload:
200% Safe / 500% Ultimate

Power: ?Turns unit ON or OFF Zero: ?Zeros applied load up to 100% of capacity (limited range in NTEP/OIML configurations) Tare: ?Tares applied load and displays weight in Net mode User: ?Programmable as TEST, UNITS, NET/GROSS, TOTAL, PEAK HOLD & SETPOINTS

5-digit, 1.5 in (38 mm) LED with programmable brightness control

Displayable Units:
Pounds or kilogram selectable

COZ, Net, Gross, Total, Peak, Low Battery, lb/kg,
Motion, Setpoints, ACK IN, ACK OUT, RF

6 Volt rechargeable battery. 115/230 VAC battery charger is included

Operating Time:
Up to 80 hours between charging with typical use. Less with optional RF Model

Operating Temperature:?
-40? to 104?F (-40? to 40?C)

Auto-Off Mode:?
Select for 15, 30, 45, 60 minutes or Off

Auto Sleep Mode:
Power down during non-use and power up with weight change or any key press

Service Counters:
Counts number of lifts over percentage of capacity and lifts over capacity


OFF, LO, HI-1, HI-2 selectable

One-year limited

NTEP CC 86-021


  • Rugged remote control (control for Off, Zero, Tare and other functions)
  • RF modem install for connectivity to MSI-8000, MSI-8000HD RF, MSI-8004HD RF
    remote display (100 ft line of sight)
  • RF scoreboard
  • NTEP Certified (250 lb-10,000 lb capacities)
  • Universal direct power supply (115/230 VAC)
  • Audible alarm
  • Wi-Fi or Bluetooth communications (additional use with MSI-ScaleCore Connect
    (available for download at Google Play Store))
  • Potential receivers: MSI-8000, MSI-8000HD RF, MSI-8004HD R, TransSend
