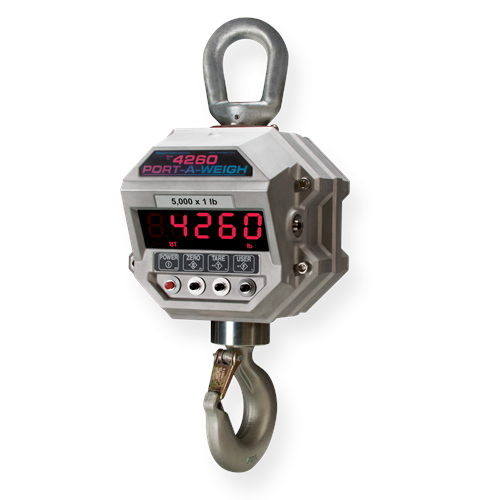

MSI-4260 Port-A-Weigh Crane Scale & MSI-4260IS Intrinsically Safe Crane Scale

$0.00

For medium- to heavy-capacity and duty-cycle needs, the MSI-4260 Port-A-Weigh & MSI-4260IS Intrinsically Safe Crane Scale has an established reputation as the industry standard in overhead weighing.

Download product PDF

Features

  • Crane unit with 5-digit, 1.2 in (30 mm) LED display
  • Top lifting eye or shackle, bottom thrust bearing swivel hook
  • 12 volt rechargeable battery and universal 115/230 VAC, 50/60 Hz battery charger (NA plug standard)
  • NEMA Type 4 IP66 rated, not safe for emersion but able to be used outdoors
  • Intrinsically Safe configurations available
  • Optional approvals:?FM cFMus and ATEX

Specifications

Accuracy:
? 0.1% +1 d?of applied load

Resolution:
3000 to 5000 d standard (Up to 10,000 d available)

Enclosure:
NEMA Tpye 4, IP66 marine grade 356 alloy anodized cast aluminum

Lifting Eye, Shackle & Hook:
Crosby or equal with 360? thrust-bearing swivel hook

Design Overload:
200% Safe / 500% Ultimate (except where noted)

Functions:
Power: Turns Unit ON or OFF, Zero: Zeros applied load up to 100% of capacity (limited range in NTEP configuration),
Tare: Tares applied load and displays weight in Net mode, F1: Programmable as TEST, UNITS, NET/GROSS, TOTAL & PEAK HOLD

Display:?
Five digit, 1.2 in (30 mm) LED with programmable brightness control

Displayable Units:
Pounds or kilograms selectable

Annunciators:
COZ, Net, Gross, Total, Peak, Low Battery, lb/kg, Motion, Setpoints

Power:
12 Volt rechargeable battery. 115/230 VAC battery charger is included

Operating Time:
Up to 200 hours between charging with typical use,?less with optional RF Modem
Link

Operating Temperature:
-4?F to 140?F (-20?C to 60?C)

Auto-Off Mode:
Select for 15, 30, 45 minutes, 1 hour or Off

Auto Sleep Mode:
Power down during non-use and power up with weight change or any key press

Service Counters:
Counts number of lifts over percentage of capacity and lifts over capacity

Calibration:
Digital

Filtering:
OFF, LO, HI-1, HI-2 selectable

Warranty:
One-year limited

Approvals:
NTEP CC 89-090 – 500 lb-2,000 lb (250 kg-1,000 kg)
NTEP CC 89-090A1 – 5,000 lb-70,000 lb (2,000 kg-35,000 kg)

Options

  • Rugged remote control (control for On/Off, Zero, Tare and other functions)
  • RF modem install for connectivity to MSI-8000, MSI-8000HD RF,?MSI-8004HD RF?remote display (100 ft line of?sight)
  • NTEP Certified configuration
  • ?Anti-heat shielding for high temperature applications
  • Substitute bottom swivel hook with shackle
  • Oversized top lifting eye or shackle
  • Oversized bottom hook
  • Universal direct power supply; 85-265 VAC, 47?440 Hz / 130?300 VDC
  • Low headroom top adapter
  • Audible alarm
  • Wi-Fi or Bluetooth communications (additional use with MSI-ScaleCore Connect?(available for download at Google Play Store))
  • Potential receivers: MSI-8000, MSI-8000HD RF, MSI-8004HD RF, TranSen
  • Custom top and bottom interfaces
  • Factory Mutual and ATEX approved Intrinsically Safe models available
