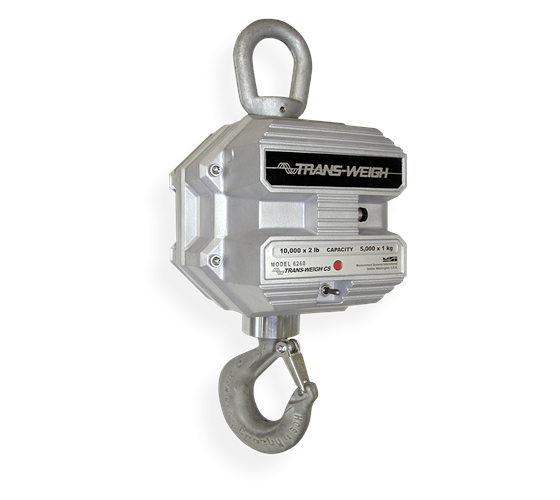

MSI-6260CS Trans-Weigh RF Crane Scale

$0.00

The MSI-6260CS RF crane scale is ideal for medium to heavy capacity and duty cycle applications not requiring an integral display.

Download product PDF
Category: Tag:

Features

Crane unit with 2.4 GHz Spread Spectrum transceiver
?Top lifting eye or shackle, bottom thrust bearing swivel hook
?12 volt rechargeable battery and universal 115/230 VAC, 50/60 Hz battery charger (NA Plug Standard)

?Meets or exceeds OSHA, ANSI, ASME and other safety design standards (5:1 Ultimate Safety Factor)

Specifications

Accuracy:
? (0.1% +1 d) of applied load

Resolution:
3,000 to 5,000 d standard (Up to 10,000 d available)

Enclosure:
NEMA Type 4, IP66, marine grade 356 alloy anodized cast aluminum

Lifting Eye, Shackle & Hook:
Crosby or equivalent with 360? thrust-bearing swivel hook

Design Overload:
200% Safe / 500% Ultimate (except where noted)

Functions:
POWER On/Off (all other scale functions are controlled from other optional networked MSI scale indicators MSI-9850 and/or MSI-9750A)

Displayable Units:
Pounds or kilograms selectable

Power:
12 Volt rechargeable battery, 115/230 VAC battery charger included

Operating Time:
Up to 40 hours between charging with typical use

Operating Temperature:
-4?F to 140?F (-20?C to 60?C)

Calibration:
Digital via MSI-9750A or MSI-9850 RF indicators or via serial interface with PC terminal program

Radio Link:
FHSS at 2.4 GHz

Radio Link Effective Range:?
Typically 500 ft (150 m) indoor, 1000 ft (300 m) outdoor with standard antennas

Warranty:
One-year limited

Approvals:
NTEP CC 07-007: 5,000 to 70,000 lb?(2,500 kg to 35,000 kg)

Options

  • NTEP Certified configuration
  • Anti-heat shielding for high temperature applications
  • Substitute bottom swivel hook with shackle
  • Oversized top lifting eye or shackle
  • Oversized bottom hook
  • Low headroom top adaptor
  • Universal direct power supply; 85-265 VAC, 47-440 Hz / 130-300 VDC
  • Wireless 802.11 b/g Ethernet connectivity
  • MSI-6260CS retrofit kit – conversion kit to upgrade existing MSI-4260 crane scales to MSI-6260CS
  • Custom top and bottom interfaces
  • Potential receivers: MSI-9850, 9750A, remote RF Indicators or LaserLight2 (each sold separately.)
  • Crane scale cart
