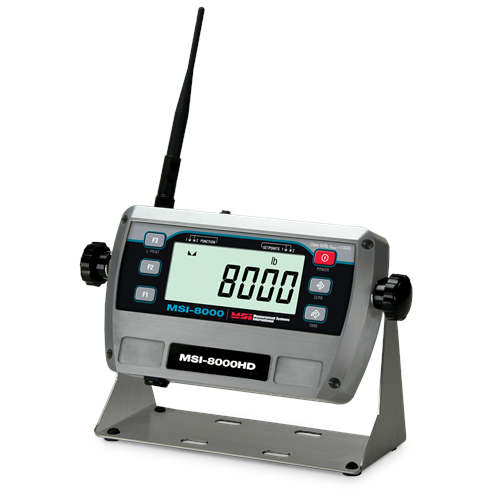

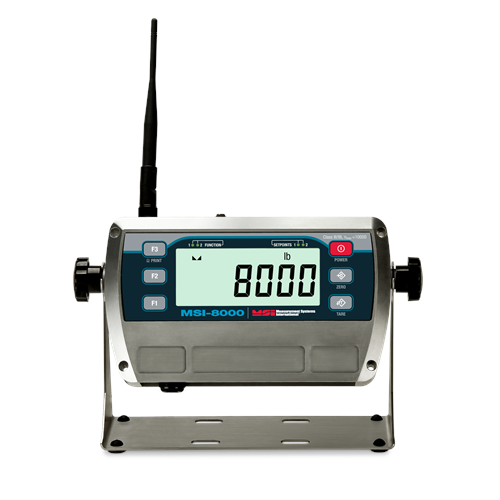

MSI-8000HD Weight Indicator/RF Remote Display

Enclosure:
NEMA Type 4, IP68 milled anodized aluminum
with O-ring gaskets

Keypad:
On/Off, Zero (100%), Tare, Print, and Two user-defined keys for the following
functions: peak hold, high resolution, total, view total, net/gross, units switching

Display:
Six-digit 1.0 in (26.4 mm) LCD

Units Displayed:
Pounds, kilograms, tons, metric tons, kilonewtons

Annunciators:
Stable, COZ, peak, kg, kN. lb, M, ton, setpoint, function LEDs
Channels: 1, 2, 3, 4, TTL

Power:
90-267 VAC, 9-36 VDC, 18-72 VDC, 120-300 VDC
Optional battery power module available

Operating Temperature:
-4?F to 140?F (-20?C to 60?C)

RF Remote Channels:
Up to four remote sensors, monitored individually, in pairs?or sum all (non-A/D version only)

Service Counters:
A/D version only

A/D Inputs:
Two independent or summing load cell inputs

Excitation:
4.8V current limited and over-voltage protected

Filtering:
Off, Low, Hi-1, Hi-2

RF Radio Link:
2.4 GHz 802.15.4
Compatible with all ScaleCore?-based products?including:

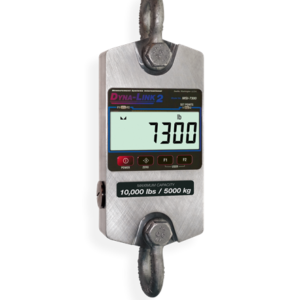

MSI-7300 Dyna-Link 2, MSI-3460?Challenger 3,
MSI-4260 Port-A-Weigh, MSI-7000?and MSI-7001

RF Effective Range:
Typically 100?or more feet (33m)

Data I/O:?
Dual RS-232 comm ports

Wired Ethernet:
Up to 8 configurable relay outputs

Optional Communications:
Wi-Fi
Bluetooth
Serial RF, Frequent Hopping Spread Spectrum Optional

Warranty:
One-year limited

Approvals:
NTEP COC#15-110
