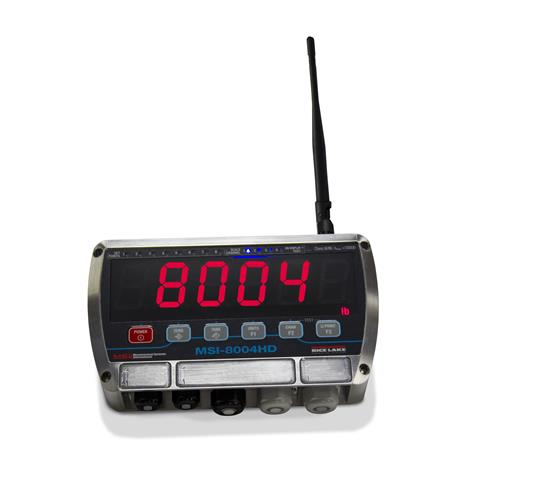

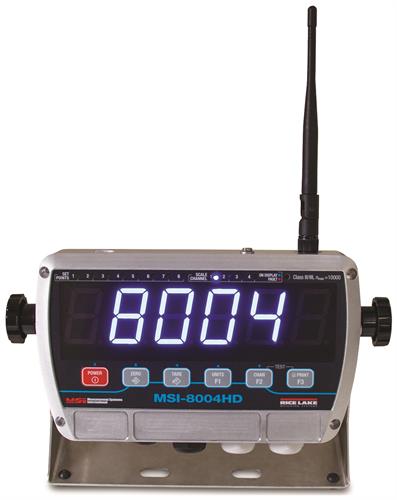

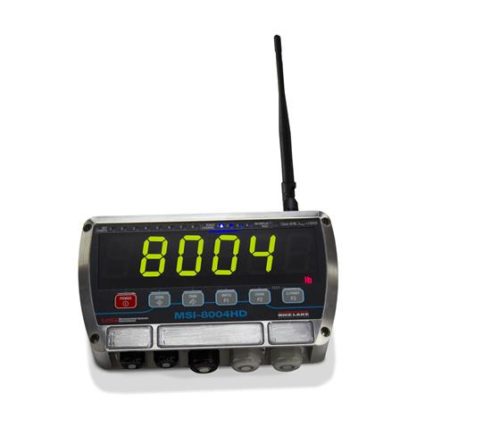

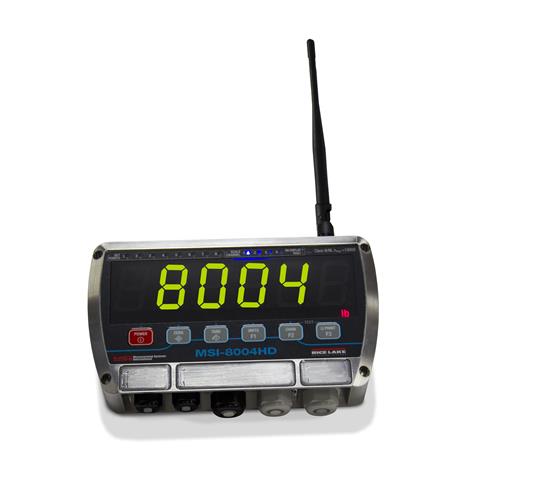

MSI-8004HD Indicator and RF Remote Display

Display:
Six-digit, 1.5 in (38 mm) LED display with red/green?coloring

Enclosure:
NEMA Type 4, IP65 milled anodized aluminum

Keypad:
On/Off, Zero, Tare, Print and two user-defined keys

Functions:
Peak hold, high resolution, total, view total, net/gross, units switching

Units:
Pounds, kilograms, tons, metric tons, kilonewtons

Annunciators:
Stable, COZ, peak, kg, kN. lb, M, ton, setpoint, function LEDs

Channels:
1, 2, 3, 4, TTL

Power:
90-267 VAC, 9-36 VDC, 18-72 VDC, 120-300 VDC

Temperature:
-4? F to 140? F (-20? C to 60? C)

RF Remote Channels:
Up to 4 remote sensors monitored individually,
in pairs or sum all (non-A/D version only)
(when used with TranSend)

Service Counters:
A/D version only

A/D Inputs:
Four independent or summing load cell inputs

Excitation:
4.8 V current limited and over-voltage protected

Relays:
Two 5V coil, 250VAC, 5A relays

Filtering:
Off, Low, Hi-1, Hi-2

RF Radio Link:
2.4 GHz 802.15.4, optional second channel for Serial
RF, 802.11 Wi-Fi, cellular connectivity or Bluetooth

RF Effective Range:
Typically 300 ft (91.44 m) line of sight

Data I/O:
Two RS-232 hard wired communication ports

Approvals:
NTEP COC #17-036, Measurement Canada

Warranty:
One-year limited warranty
