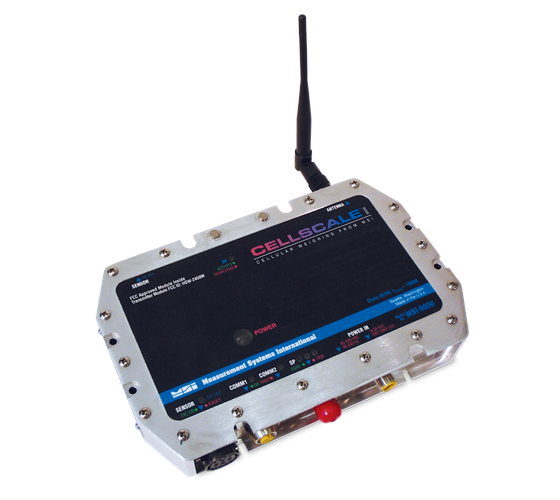

MSI-9000 CellScale? Wireless Weighing Solution


The MSI-9000 CellScale? is our most innovative and technologically advanced product for wireless weighing and networked system solutions for industrial plant applications.

Download product PDF


? 2.4 GHz frequency hopping spread spectrum
? Two scale inputs and excitation with remote sensing (see accessories formating connector)
? Power/switch cable, 13 ft (4 m) for 9-30 VDC input with two programmable switch inputs
? RS-232, RS-422 and RS-485 I/O with 13 ft (4 m) interface cable
? Three internal solid state relays for setpoint control
? Real-time clock
? NEMA Type 4, IP65 enclosure (NEMA Type 6, IP67 with long range antenna)


NEMA Type 4, IP65 milled anodized aluminum with O-ring gaskets
NEMA Type 6, IP67 with optional long range antenna

3.5 lb (1.6 kg)

8 LED status lamps for Power, Setpoints, Comm Port, Excitation & RF Modem

Real-Time Clock:
USA or European format programmable

Power Input:
9-30 VDC (Internal 85-265 VAC power supply optional)

Operating Temperature:
-4?F to 158?F (-20?C to 70?C)

Scale Inputs:
2 sensor inputs and 6 terminal connections

5 V (+5 V relative to ground)

Digital via input comport or RF with other CellScale weighing components.
Programmable calibration settings, include: AZM, ?Motion, Filter, Zero, Units, Capacity and Divisions

Digital Filtering:
Two-stage programmable digital filtering

Totalization, Statistics and Product IDs:
Push-button or automatic with each ID register. Up to 32 alphanumeric ID registers

Radio Link:
FHSS at 2.4 GHz (up to 64 network selections)

Radio Link Effective Range:
Typically 500 ft (150 m) indoor, 1,000 ft (300 m) outdoor with standard antennas. (See
optional antennas for longer range)

Standard Antenna:
1/2 wave 2dBi, articulated

RFI/EMI Shielding:
Exceeds NIST HB44 and CE Standards

Data I/O:
2 programmable comports supporting RS-232 or RS-422

Push Button Inputs:
2 inputs on power connector and 1 isolated input on setpoints connector

12-pin MIL-C-26482 for load sensor input Turck compatible Pico for RS-232 output

Math Channels:
8 math channels programmable for arithmetic ?formula processing

Internal Setpoints:
3 60 V at 350 mA internal programmable solid state relay contacts

One-year limited

NTEP CC 05-077


Part #?138361 Product DescriptionF/A 9000 2450 2 L/C DC
