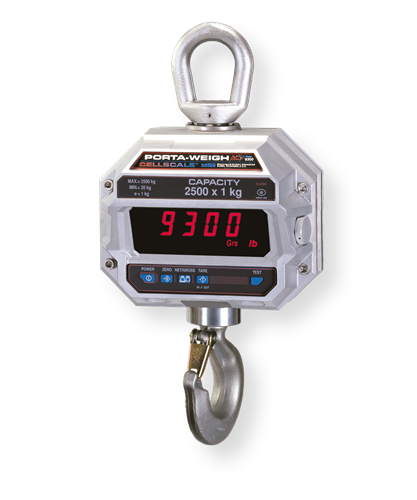

The MSI-9300 Port-A-Weigh Plus RF crane scale uses advanced CellScale? technology to power medium- to heavy-capacity and duty-cycle crane scale applications.
Accuracy:
? 0.1% ?+1 d?of applied load
Resolution:
3,000 to 5,000 d standard (Up to 10,000 d available)
Enclosure:
NEMA Type 4, IP66, marine grade 356 alloy anodized cast aluminum
Lifting Eye, Shackle & Hook:
Crosby or equal with 360? thrust-bearing swivel hook.
Design Overload:
200% Safe / 500% Ultimate (except where noted)
Functions:
POWER, ZERO, NET/GROSS, TARE and Programmable TEST/USER
Display:
Six digit, 1.2 in (30 mm) LED with 14 feature annunciators and programmable brightness control
Displayable Units:
Pounds or kilograms selectable
Power:
12 V rechargeable battery, 115-230 VAC battery charger included
Operating Time:
Up to 30 hours between charging with typical use
Operating Temperature:
-4?F to 140?F (-20?C to 60?C)
Calibration:
Digital via MSI-9750A or MSI-9850 RF indicators or via serial interface with PC terminal program
Filtering:
LO, Medium and HI selectable
Radio Link:
FHSS at 2.4 GHz
Radio Effective Range:
Typically 500 ft (150 m) indoor, 1000 ft (300 m) outdoor with standard antennas
Approvals:
NTEP CC 07-007; 5,000 – 70,000 lb (2,500 – 35,000 kg capacities)
Warranty:
One-year limited warranty
