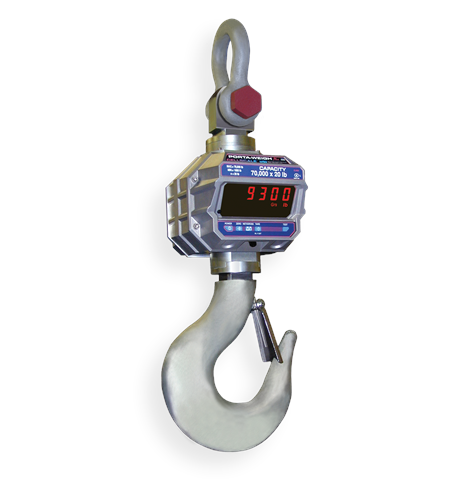

MSI-9300HT Hi-Torque Port-A-Weigh Plus CellScale™ RF Crane Scale

$0.00

The MSI-9300HT is a high-torque, unique crane scale configuration specially designed for heavy capacity coil handling applications, up to 35 tons.

Download product PDF

Features

  • Crane unit with 2.4 GHz spread spectrum transceiver
  • 6 digit, 30 mm (1.2 in) LED display and annunciators
  • Top shackle interface and fixed bottom hook
    (Note: Top shackle not included; see Options)
  • 12 volt rechargeable battery and universal 115/230 VAC, 50/60 Hz battery charger (NA plug standard)
  • Hi-torque load train designed for use with powered rotation

Specifications

Accuracy:
± 0.1%  +1 d of capacity

Resolution:
3000 to 5000 d standard (Up to 10,000 d available)

Enclosure:
NEMA Type 4, IP66, marine grade 356 alloy anodized cast aluminum

Lifting Eye, Shackle & Hook:
Shackle is optional and Crosby fixed hook provided as standard.

Design Overload:
200% Safe / 500% Ultimate

Functions:
POWER, ZERO, NET/GROSS, TARE and Programmable TEST/USER

Display:
6 digit, 1.2 in (30 mm) LED with 14 feature annunciators and programmable brightness control

Displayable Units:
Pounds or kilograms selectable

Power:
12 Volt rechargeable battery, 115-230 VAC battery charger included

Operating Time:
Up to 30 hours between charging with typical use

Operating Temperature:
-4ºF to 140ºF (-20ºC to 60ºC)

Calibration:
Digital via MSI-9750A or MSI-9850 RF indicators or via serial interface with PC terminal program.

Filtering:
LO, Medium and HI selectable

Radio Link:
FHSS at 2.4 GHz

Radio Effective Range:
Typically 500 ft (150 m) indoor, 1000 ft (300 m) outdoor with standard antennas.

Warranty:
One-year limited

Options

  • RF remote crane unit control, includes On/Off, Zero, Tare, Net/Gross, Total, and programmable function keys
  • Anti-heat shielding for high temperature applications
  • Substitute bottom hook with shackle
  • Oversized top or shackle
  • Oversized bottom hooks
  • Universal direct power supply; 85-265 VAC, 47-440 Hz / 130-300 VDC
  • Wireless 802.11 b/g Ethernet connectivity
  • Low headroom top adaptor
  • Top shackle
  • Audible alarm
  • Custom top and bottom interfaces
  • Potential receivers: MSI-9850, 9750A, remote RF Indicators or LaserLight2 (each sold separately)
