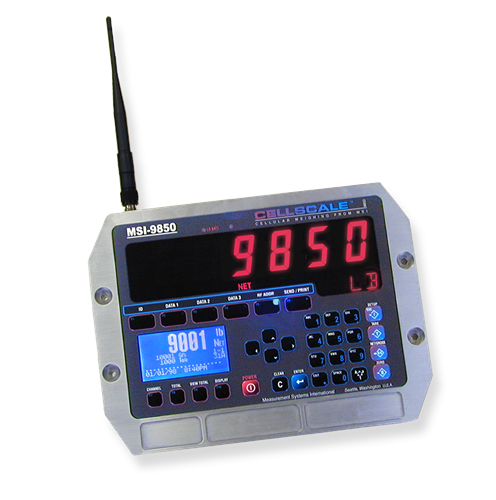

MSI-9850 CellScale? RF Digital Weight Indicator


The MSI-9850 RF digital weight indicator serves as a wireless remote controller and weight indicator providing remote access to multiple scales and sensors in a configured CellScale network.

Download product PDF


  • Compatible with MSI-6260CS, MSI-9300 and MSI-9000 CellScale
  • Six-digit 1.2 in (30 mm) LED display
  • 1.4 in x 2.6 in (36 mm x 67 mm) information LCD display
  • 2.4 GHz spread spectrum transceiver
  • RS-232 data I/O with real-time clock
  • NEMA Type 4, IP65 enclosure
  • Power input 85-265 VAC, 47-440 Hz / 130-300 VDC; 8 ft/2.4 m power cable included (NA plug standard)


NEMA Type 4, IP65 milled anodized aluminum with O-ring gaskets
NEMA Type?6, IP67 with optional long-range antenna

5.0 lb (2.8 kg)

33 keys?12 key alphanumeric, four cursor keys, seven control keys and 10 user programmable keys.
Password protected with lock feature

Weight Display:
Six-digit, 1.2 in (30 mm) high numeric weight LED, four alphanumeric 0.5 in (13 mm) high data LED, six
LED function select annunciators, 10 LED annunciators, Low battery LED indicator

Information Display:
1.4 in x 2.6 in (36 x 67 mm) backlit LCD. Capable of 8 lines of 21 characters each backlight selectable On, Off or Automatic

Power Input:
Internal AC/DC power supply: 85-265 VAC, 47-440 Hz/130-300 VDC
Also included: An independent 7-25 VDC power input (requires optional power/switch interface cable)
8 ft/2.4 m power cable included (NA plug standard)

Operating Temperature:
4?F to 158?F (-20?C to 70?C)

Radio Link:
FHSS at 2.4 GHz (up to 64 network selections)

Radio Link Effective Range:
Typically 500 ft (150 m) indoor, 1000 ft (300 m) outdoor with standard antennas.
See optional antennas for longer range.

Standard Antenna:
1/2 wave 2 dBi, articulated

RFI/EMI Shielding:
Exceeds NIST HB44 and CE Standards

RS-232, Turck compatible Pico connector

One-year limited

NTEP CC 05-077


Part #?159625 Product DescriptionMSI-9850 Meter AC POWER United States
Part #?162035 Product DescriptionMSI-9850 Meter Intl AC/DC Power
