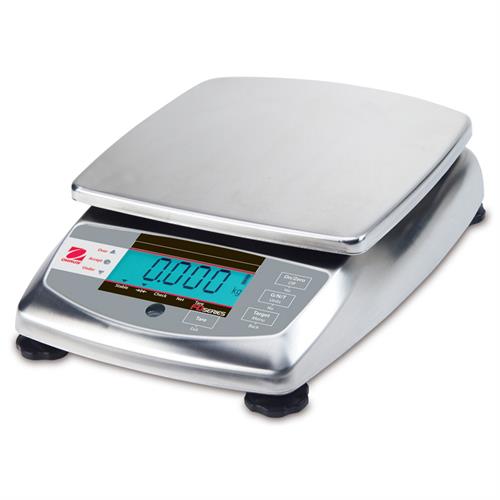

Ohaus FD Series Food Portioning Scale

$0.00

The Ohaus FD Series Food Portioning Scale is a rugged, multi-use portioning scale designed for use in food service applications.

Download product PDF
Category:

Features

  • Designed for food service and other industrial applications with a focus on speed, durability and cleanliness
  • All stainless steel, high-quality formed construction for sanitary cleaning and durability
  • Checkweighing function for food packaging and preparation
  • Internal rechargeable battery assures excellent portability
  • Stainless steel housing and pan with non-slip rubber feet
  • Checkweighing mode with 3-LED indicator and audible alarm
  • Bright backlit LCD display
  • Stable weight display within 2 seconds
  • Multiple weighing units: lb, decimal/fractional oz, kg, g and lb
  • AC power or internal rechargeable lead acid battery
  • NSF-certified, USDA-AMS accepted, supports HACCP compliance
  • EC/OIML type approved

Specifications

FD3H FD3 FD6H FD6 FD15H FD15
Part # 102774 – 102775 – 102776 –
NTEP
Part # – 87824 – 87825 – 87826
Capacity 6 lb 6 lb 15 lb 15 lb 30 lb 30 lb
Resolution 0.0002 lb 0.002 lb 0.001 lb 0.005 lb 0.001 lb 0.01 lb
Overload capacity 150%
Operating Modes Weighing, Checkweighing
Repeatability 0.2 g 0.4 g .2 g
Linearity ±0.2 g ±0.4 g ±0.2 g
Stabilization Time < 2 seconds
Operating Temperature 14° F to 104° F (-10° C to 40° C) 10 to 85% relative humidity, non-condensing
Environmental IP43
Pan Size 8.2 x 8.2 in (209 x 209 mm)
Dimensions 9 x 12 x 2.8 in (300 x 223 x 71 mm)
Weight (Approx.) 8 lb (3.6 kg)
Est. Ship Weight 11 lb (5 kg)
Power 120 V AC adapter, 9 V DC 0.5 A 50/60 Hz (Other adapters available by special request)
Battery life Maximum 120 hours
Warranty One-year limited warranty
Return Policy Ohaus Standard Policy – restock fee may apply
UNIT OF MEASURE
Kilogram 3 x 0.0001 kg 3 x 0.001 kg 6 x 0.0002 kg 6 x 0.002 kg 15 x 0.005 kg 15 x 0.005 kg
Grams 3000 x .1 g 3000 x 1 g 6000 x 0.2 g 6000 x 2 g – 15000 x 5 g
Ounce 96 oz x 0.005 oz; 96 oz x 1/4 oz 96 oz x 0.05 oz or 1/4 oz 240 oz x 0.01 oz; 240 oz x 1/4 oz 240 oz x 0.1 oz or 1/4 oz 480 oz x 0.02 oz or 1/4 oz 480 oz x 0.2 oz or 1/4 oz
Pound x Ounce 6 lb 0 oz x 1/4 oz; 6 lb 0 oz x 0.1 oz N/A 15 lb 0 oz x 0.1 oz; 15 lb 0 oz x 1/4 oz N/A 30 lb 0 oz x 0.1 oz or 1/4 oz N/A



Options

103118 Accessory,Ohaus, Valor FD Hard Shell Carrying Case For Valor 5000 and FD
103116 Pan,Flat Ohaus Option For FD And Valor 5000 Series
103117 Scale OPT,In-Use Cover Ohaus FD And Valor 5000 Series
33451 Scoop,Maxi Polypropylene 10 dia x 2.5 deep With Pouring Spout-Ohaus 3369-10
97250 Scoop,Stainless Steel 12 x 6 x 2.75 in
100292 Scoop,SS 17.2 x 11 x 3.4 in, Pouring Spout
98020 AC Adapter,Ohaus FD, CD Trooper,Trooper Count,120VAC, 12VDC, 840MA

Models

102774 Scale,Ohaus FD3H Food, 6 x 0.0002lb (3kg x 0.0001kg), 120VAC adapter
87824 Scale,Ohaus FD3 NTEP Food, 6 lb x 0.001 lb, 3 kg x 0.001 kg (non-NTEP) 120VAC adapter
102775 Scale,Ohaus FD6H Food, 15 lb x 0.001 lb (6kg x 0.0002kg), 120VAC adapter
87825 Scale,Ohaus FD6 NTEP Food, 15 lb x.002lb, 6 kg x 0.001 kg default 120VAC adapter NTEP 3000 division
102776 Scale,Ohaus FD15H Food, 30 lb x 0.001 lb (15 kg x 0.001 kg), 120VAC adapter
87826 Scale,Ohaus FD15 NTEP Food, 30 lb x 0.01 lb, 15 kg x 0.002 kg (default) 120VAC adapter
