OIML Range 500 g Precision Laboratory Metric Sets

$0.00

OIML precision laboratory metric sets with a 500 gram range are used in density measurement, tolerance checking, mass standards and OIML guidelines for balance and scale verification.

Download product PDF
Categories: ,

Features

  • Nominal value marked on weights
  • Serial numbers applied to case (weights may be marked with symbol)
  • Density is approximately 7.95 g/cm3
  • OIML E1, E2, F1 and F2 polish finish

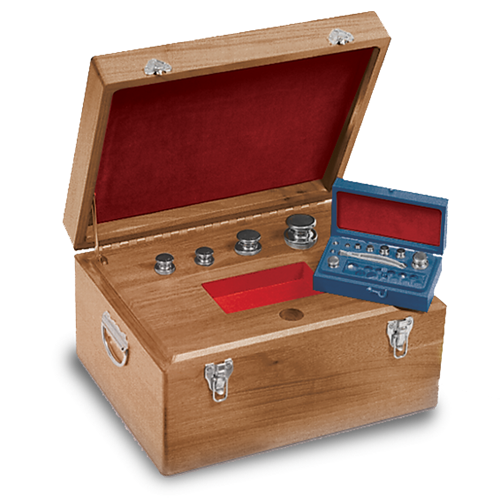

  • E1, E2, F1 and F2 weights include protective case
  • Weights manufactured international recommendation, OIML R111 specifications
  • E1 and E2 supplied with Accredited Certificate per OIML R111

Specifications

500 g – 1 mg 500 g – 100 mg 500 g – 1 g 500 g – 100 g
1 – 500 g 1 – 500 g 1 – 500 g 1 – 500 g
2 – 200 g 2 – 200 g 2 – 200 g 2 – 200 g
1 – 100 g 1 – 100 g 1 – 100 g 1 – 100 g
1 – 50 g 1 – 50 g 1 – 50 g
2 – 20 g 2 – 20 g 2 – 20 g
1 – 10 g 1 – 10 g 1 – 10 g
1 – 5 g 1 – 5 g 1 – 5 g
2 – 2 g 2 – 2 g 2 – 2 g
1 – 1 g 1 – 1 g 1 – 1 g
1 – 500 mg 1 – 500 mg
2 – 200 mg 2 – 200 mg
1 – 100 mg 1 – 100 mg
1 – 50 mg
2 – 20 mg
1 – 10 mg
1 – 5 mg
2 – 2 mg
1 – 1 mg
Piece Count
24 16 12 4
Total Weight
1.11111 kg 1.111 kg 1.11 kg 1 kg
Part # Part # Part # Part #
30822-Class E1 30826-Class E1 30830-Class E1 30834-Class E1
30823-Class E2 30827-Class E2 30831-Class E2 30835-Class E2
30824-Class F1 30828-Class F1 30832-Class F1 30836-Class F1
30825-Class F2 30829-Class F2 30833-Class F2 30837-Class F2

Options

36092 Form,Statement of Accuracy
11714 Weight Glove,Cloth White
11711 Weight,Tweezers 3.54x.46 Delrin
25836 Serial Number
50035 Weight Forceps, 4-3/4 Plastic, 200g to 500g
11755 Cover,Leaf Weight
50000 Tong ASSY,24cmx7.5cm W/ Surgical Tubing On Ends
152414 Tweezers,Straight Tip 140 mm, Tips made of PA12 Plastic and Carbon Fiber

Models

30822 Weight Set,500g-1mg OIML Class E1 SST, Calibration Certificate Included
30830 Weight Set,500g-1g OIML Class E1 SST, Calibration Certificate included
30826 Weight Set,500g-100mg OIML Class E1 SST, Calibration Certificate Included
30834 Weight Set,500g-100g OIML Class E1 SST, Calibration Certificate Included
