OIML Range 500 mg and 50 g Precision Laboratory Metric Sets

$0.00

OIML precision laboratory metric sets with a 500 milligram and 50 gram range are used in density measurement, tolerance checking, mass standards and OIML guidelines for balance and scale verification.

Download product PDF
Categories: ,

Features

  • Nominal value marked on weights
  • Serial numbers applied to case (weights may be marked with symbol)
  • Density is approximately 7.95 g/cm3
  • OIML E1, E2, F1 and F2 polish finish
  • OIML M1 and M2 satin finish

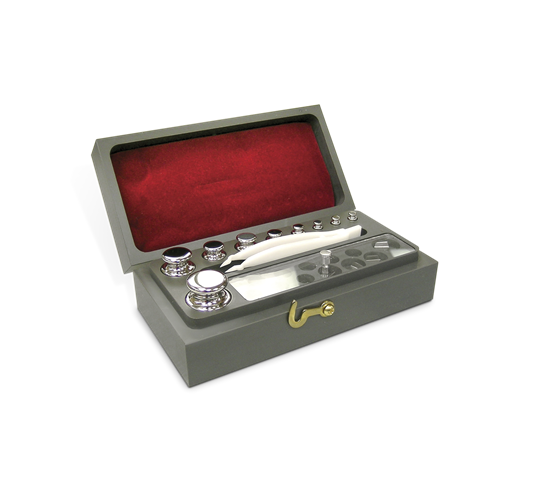

  • E1, E2, F1, F2 and M1 weights include protective case
  • Weights manufactured international recommendation, OIML R111 specifications
  • E1 and E2 supplied with Accredited Certificate per OIML R111

Specifications

500 mg – 1 mg 500 mg – 100 mg 50 g – 1 mg 50 g – 1 g
1 – 500 mg 1 – 500 mg 1 – 50 g 1 – 50 g
2 – 200 mg 2 – 200 mg 2 – 20 g 2 – 20 g
1 – 100 mg 1 – 100 mg 1 – 10 g 1 – 10 g
1 – 50 mg   1 – 5 g 1 – 5 g
2 – 20 mg   2 – 2 g 2 – 2 g
1 – 10 mg   1 – 1 g 1 – 1 g
1 – 5 mg   1 – 500 mg
2 – 2 mg   2 – 200 mg
1 – 1 mg   1 – 100 mg
    1 – 50 mg
    2 – 20 mg
    1 – 10 mg
    1 – 5 mg
    2 – 2 mg
    1 – 1 mg
Piece Count
12 4 20 8
Total Weight
1.11 g 1 g 111.11 g 108 g
Part # Part # Part # Part #
30850-Class E1 30854-Class E1 -Class E1 -Class E1
30851-Class E2 30855-Class E2 96477-Class E2 96478-Class E2
30852-Class F1 30856-Class F1 96479-Class F1 96480-Class F1
30853-Class F2 30857-Class F2 96481-Class F2 96482-Class F2
161537-Class M1 – – –

Options

36092 Form,Statement of Accuracy
11714 Weight Glove,Cloth White
11711 Weight,Tweezers 3.54x.46 Delrin
152414 Tweezers,Straight Tip 140 mm, Tips made of PA12 Plastic and Carbon Fiber
25836 Serial Number
50035 Weight Forceps, 4-3/4 Plastic, 200g to 500g
11755 Cover,Leaf Weight
50037 Weight,Lift 2kg and 5kg OIML Polycarbonate
50000 Tong ASSY,24cmx7.5cm W/ Surgical Tubing On Ends

Models

30850 Weight Set,500mg-1mg OIML Class E1 SST, Calibration Certificate Included
30854 Weight Set,500mg-100mg OIML Class E1 SST, Calibration Certificate Included
