Paramounts EP Module Kits

$0.00

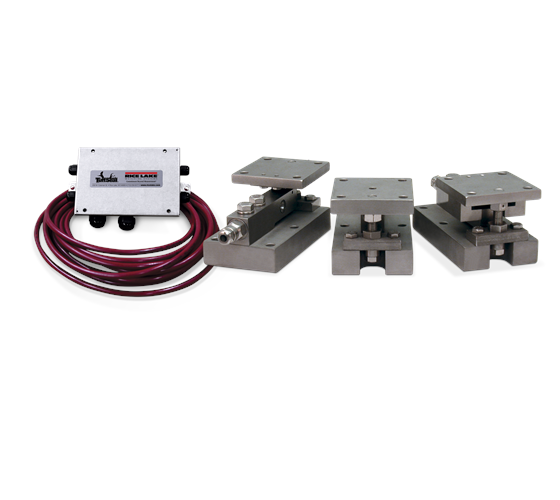

Complete Kit Includes:

  • One?JB4SS NEMA Type 4X stainless steel signal trim junction box

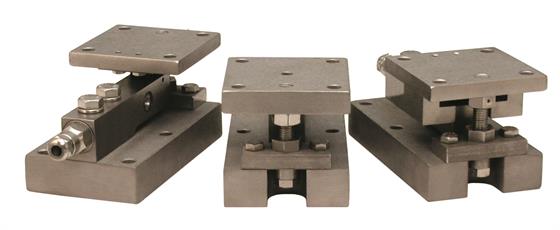

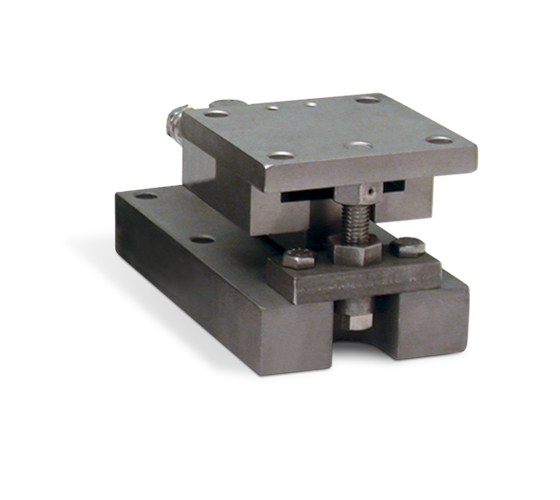

  • One?fixed-pin module, one?side-stop module, and one or two?free-sliding assemblies. Each module is complete with a Flintec SB5 NTEP Certified 1:5000d, Class III, stainless steel environmentally protected load cell
  • 25 ft of our hostile environment EL147HE SURVIVOR load cell cable

Standard Features:

  • Capacities (per module): 1,125-22,500 lb (1 kN/102.1 kg-100 kN/10,205.9 kg)
  • NTEP Certified load cells
  • Unique design allows for thermal expansion/contraction
  • Jacking screw allows empty vessel to be lifted clear of load cell for maintenance
  • Unique blind load hole eliminates unwanted side and eccentric loads
  • Vessel is free to slide laterally on PTFE-coated surfaces
  • Load cell outputs are matched to ?0.07% allowing replacement without further calibration
Download product PDF
Category:

Features

? Capacities (per module): 1,125lb-22,500lb
(1kN/102.1kg-100kN/10,205.9kg)
? NTEP Certified load cells
? Unique design allows for thermal
expansion/contraction
? Jacking screw allows empty vessel to be lifted
clear of load cell for maintenance
? Unique blind load hole eliminates unwanted side
and eccentric loads
? Vessel is free to slide laterally on
PTFE-coated surfaces
? Load cell outputs are matched to ?0.07% allowing
replacement without further calibration

Specifications

Applications
? Light- to medium-capacity tanks and hoppers
? High-vibration mixers and blenders
? Process measurement and control
Complete Kit Includes
? One JB4SS NEMA Type 4X stainless steel signal
trim junction box
? One fixed-pin module, one side-stop module, and
one or two free-sliding assemblies. Each module
is complete with a Flintec SB5 NTEP Certified
1:5000d, Class III, stainless steel environmentally
protected load cell
? 25ft of our hostile environment

Models

3-Module Kit NTEP

33683 Mount Kit,Paramount EP 3ea 5kn 1,125lb Mild Steel Zinc Plated Compression Incl SB5 And JB4SS
33682 Mount Kit,Paramount EP 3ea 10kn 2,250lb Mild Steel Zinc Plated Compression Incl SB5 And JB4SS
33681 Mount Kit,Paramount EP 3ea 20KN 4,500lb Mild Steel Zinc Plated Compression Incl SB5 Load Cell and JB4SS junction box
33680 Mount Kit,Paramount EP 3ea 50kn 11,250lb Mild Steel Zinc Plated Compression Incl SB5 And JB4SS

3-Module Kit Non-NTEP

33679 Mount Kit,Paramount EP 3ea 100kn 22,500lb Mild Steel Zinc Plated Compression Incl SB5 And JB4SS

4-Module Kit NTEP

33678 Mount Kit,Paramount EP 4ea 5kn 1,125lb Mild Steel Zinc Plated Compression Incl SB5 And JB4SS
33677 Mount Kit,Paramount EP 4ea 10kn 2,250lb Mild Steel Zinc Plated Compression Incl SB5 And JB4SS
33676 Mount Kit,Paramount EP 4ea 20KN 4,500lb Mild Steel Zinc Plated Compression Incl SB5 Load Cell and JB4SS junction box.
33675 Mount Kit,Paramount EP 4ea 50kn 11,250lb Mild Steel Zinc Plated Compression Incl SB5 And JB4SS

4-Module Kit Non-NTEP

33674 Mount Kit,Paramount EP 4ea 100kn 22,500lb Mild Steel Zinc Plated Compression Incl SB5 And JB4SS
