The Paramounts EP system offers all the design advantages of the Paramounts system in applications where the extensive sealing of the SB4 load cell is not necessary. Paramounts EP provides a low-cost alternative for the superior mechanical loading system found in the standard Paramounts. Economy and performance are in one complete weighing system.

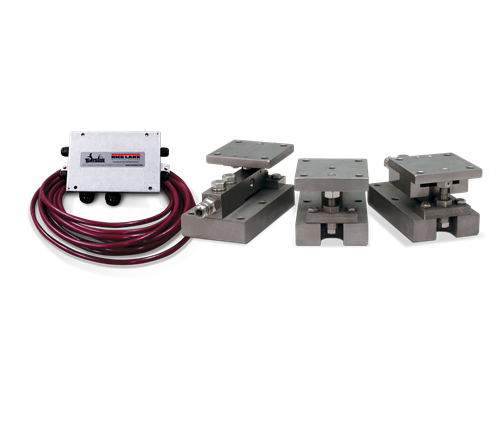

One fixed-pin module, one side-stop module, and one or two free-sliding assemblies. Each module is complete with a NTEP Certified Flintec SB5 stainless steel environmentally protected load cell.
One JB4SS NEMA Type 4X stainless steel signal trim junction box
25 ft of hostile environment EL147HE SURVIVOR® load cell cable
Standard Features
Capacities (per module): 5 to 20 kN
NTEP Certified 1:5000d, Class II load cells
Unique design allows for thermal expansion/contraction
Jacking screw allows empty vessel to be lifted clear of load cell for maintenance
Unique blind load hole eliminates unwanted side and eccentric loads
Vessel is free to slide laterally on PTFE-coated surfaces
mV/V/ohm load cell outputs allow for replacement without further calibration
Specifications
Rated Capacity
C
H
H1
*H2
**H2
H3
L
L1
L2
L3
L4
W
W1
kN/in
5 to 20
0.44
3.58
1.25
0.50
0.75
3.06
7.51
3.00
4.00
3.00
0.50
4.00
3.00
50
0.56
4.66
1.50
0.62
1.00
4.09
9.19
3.87
5.00
3.87
0.56
5.00
3.87
100
0.69
6.41
2.00
0.75
1.25
5.73
11.46
4.75
6.00
4.75
0.69
6.00
4.75
VESSEL ARRANGEMENT
When arranged as illustrated, the vessel is fixed at one corner
but is able to slide freely as indicated. This ensures there
is minimal side loading on the cells and at the same time the
vessel is self-checking. The unique, patented blind load hole
technology used in these mounts introduces the load at the
neutral axis of the load cell which helps minimize the effects
of side loads.
