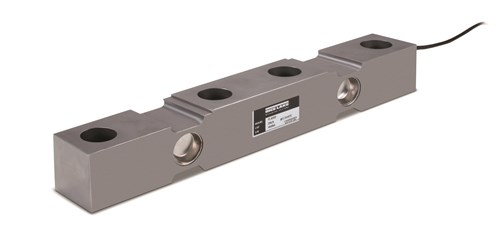

PL9200-25K Stainless Steel, Hermetically Sealed Load Cell
$0.00
PL9200-25K Stainless Steel, Hermetically Sealed Load Cell
The PL9200 onboard weighing load cell is hermetically sealed with an IP69 rating.
Download product PDF
Specifications
Full Scale Output:
2.0 mV/V
Output Resistance:
700 (nominal)
Input Resistance:
736 (nominal)
Material/Finish:
Stainless steel
Temperature:
14 °F to 104 °F (-10 °C to 40 °C) |
Rated Excitation:
15 VDC (5 to 10 V recommended)
Non-linearity:
±0.25% full scale
Insulation Resistance:
5,000 mega ohms at 50 VDC
Seal Type:
Hermetically sealed, IP69
|
Cable Length:
25 ft
Wire Color Code:
Red +Excitation
Green +Signal
Black -Excitation
White -Signal
Yellow Shield
Warranty:
One-year limited |
