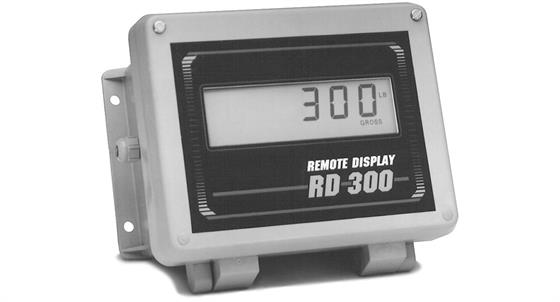

Rice Lake’s RD-300 is housed in a durable FRP (Fiberglass Reinforced Polyester) enclosure and is well suited for displaying weight data in many indoor areas.
? NEMA Type 4X Fiberglass-Reinforced Polyester (FRP) wall mount enclosure

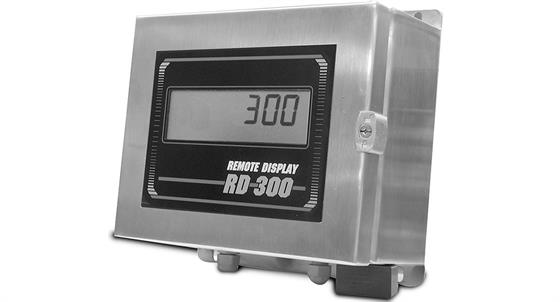

? Optional NEMA Type 4X stainless steel wall mount enclosure
? Easy-to-read 1 in (25.4 mm) Liquid Crystal Display (LCD)
? RS-232 and 20 mA active current loop interface
? Status annunciators
? AC operation
? Backlight for dark conditions
? Compatible with a variety of digital weight indicators; intuitive data receiver automatically interprets serial strings
? 115 VAC and 230 VAC available
Status Annunciators:
lb, kg, gross, net Operating Voltage:
115 VAC, ?10% 60 Hz,
DC Voltage Range: 6.2-18 VDC
230 VAC available
Input Interface:
RS-232, 20 mA active or passive current loop, standard
ASCII compatible Baud Rate:
Selectable: 300, 600, 1200, 2400, 4800, 9600, 19200 Operating Temperature:
-13?F to 104?F (-25?C to 40?C)
Rating/Material:
NEMA Type 4X FRP or optional stainless steel Weight:
Approximately 5 lb (2.3 kg) stainless steel unit, approximately 6 lb (2.7 kg) Warranty:
One-year limited warranty
Models
Part #?68782

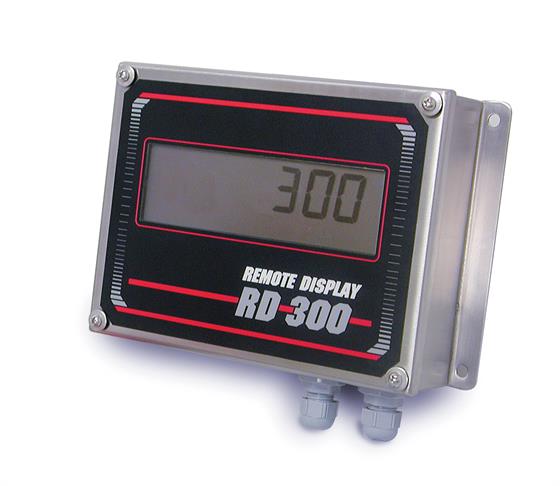

Product DescriptionDisplay,Remote Wall RD300 1 Inch LCD w/ Backlight 117 VAC Serial SST Compact Enclosure
Part #?22532
Product DescriptionDSPL,Remote Wall RD300AFB 1in LCD W/Backlight 117VAC Serial FRP NEMA 4X
Part #?22536
Product DescriptionDSPL,Remote Wall RD300ASB 1in LCD W/Backlight 117VAC Serial SST NEMA 4X
Part #?22540
Product DescriptionDSPL,Remote RD300APB 1in LCD W/Backlight 117VAC Serial SST Panel Mount
Part #?34750
Product DescriptionDSPL,Remote Wall RD300AFB 1 in. LCD W/Backlight 230 VAC Serial FRP NEMA 4x
