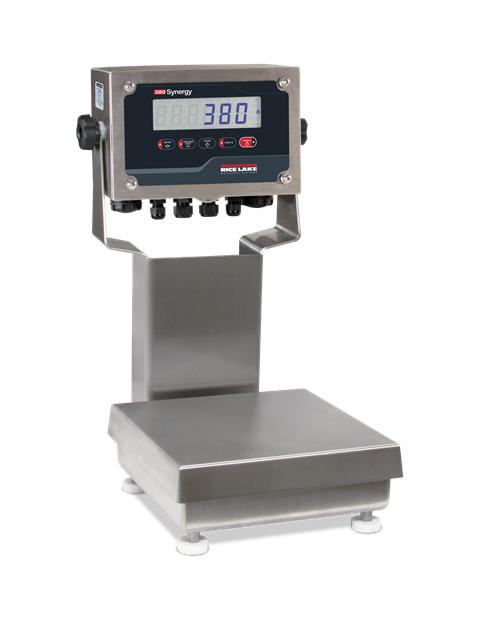

Ready-n-Weigh Bench Scale System CW-90B Scale Base 380 Indicator

$0.00

The CW-90B Ready-n-Weigh Bench Scale System is a complete bench scale, indicator, and column package. Match the CW-90B light-capacity industrial bench scale base with the 380 basic digital weight indicator to fit your application. Available in a range of low- to mid-size dimensions and capacities up to 100 pounds.  Each scale package arrives factory calibrated for quick setup.

Download product PDF
Categories: ,

Features

  • Package includes scale with IP67 aluminum environmentally sealed load cell
    with an indicator and 12-inch column
  • Factory calibrated with indicator setup and configured for 5,000 divisions
  • Scale includes rubber feet to provide exceptional traction and avoid scratching surfaces along with removable top cover for ease of cleaning
  • Standard RS-232 serial port for connecting to a variety of peripherals
  • Powered by four alkaline C-cell batteries (not included) or external AC adapter
    (not included)

Specifications

Load Cell, NTEP Certified:
IP67 aluminum, environmentally sealed

Scale Construction:
304 stainless steel

Maximum Overload:
180% to 200% depending on capacity

Overload Protection:
Five-point, independently adjusted

 Scale Frame:
AISI304L, straight line finish, Ra = 45 +/- 10

Scale Cover:
AISI304L, straight line finish, Ra = 45 +/- 10

Cable Length:
34 in

 Compensated Temperature Range:
14 °F to 104 °F (-10 °C to 40 °C)

Approvals:
NTEP 21-051, Class III 5,000 d
Measurement Canada AM-6184
CE
cULus

Warranty:
Two-year limited
Power:
Batteries: 4 alkaline C-cell
Optional: 115/230 VAC to 12 VDC adapter

Battery Life:
45 hours with 4 x 350 ohm load cells, low backlight

Communication Ports:
One RS-232 (three-wire)
One USB 2.0

 Display:
Six 1 in (25 mm) tall, LCD digits

Status Annunciators:
g, lb, t, tn, kg, oz, battery level, PT, LT, gross, zero, unstable, net

Keys/Buttons:
5 tactile buttons

 Rating/Material:
Enclosure: IP66, 304 Stainless steel

Approvals:
NTEP 21-051
Measurement Canada AM-6184
CE Approved
cULus Listed

Warranty:
Two-year limited

Options

208528 Scale PKG, CW-90B-380 10×10 5 lb/2.5 kg with 12 inch column 115VAC SST
208529 Scale PKG, CW-90B-380 10×10 10 lb/5 kg with 12 inch column 115VAC SST
208530 Scale PKG, CW-90B-380 10×10 25 lb/10 kg with 12 inch column 115VAC SST
208531 Scale PKG, CW-90B-380 12×12 25 lb/10 kg with 12 inch column 115VAC SST
208532 Scale PKG, CW-90B-380 12×12 50 lb/25 kg with 12 inch column 115VAC SST
208533 Scale PKG, CW-90B-380 12×12 100 lb/50 kg with 12 inch column 115VAC SST
